Mini Professional Security Camera

Item # 15NVSL

Be the first to review this product

$155.00

Availability: In Stock

$155.00

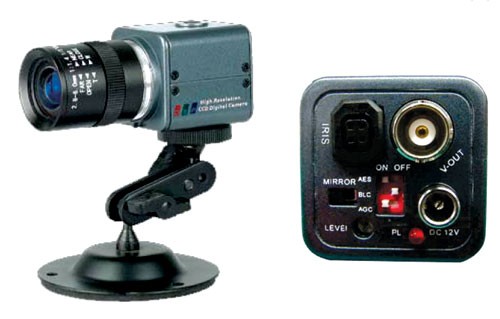

Mini Box Camera

More Views

Details

Great little mini surveillance camera with a high res 560tvl SONY CCD that can see in very low light thanks to its slow shutter feature, and day & night video capability. Compatible with any CS mount lens that we offer.

Features:

  • Starlight Surveillance Camera
  • 560 Lines High Resolution Color, 620TVL in Black and White mode in low light
  • 0.001 Lux Slow Shutter (Sense up technology)
  • Low Power Consumption 12V 150mA
  • Auto Iris
  • Back Light Compensation
  • Auto White Balance
  • Auto Electronic Shutter
  • Auto Gain Control
  • Mirror feature lets you flip the image from left to right
  • Ultra Small Size Box Camera
  • C and CS Lens Mount Compatible, Lens not included
  • 12V DC Power Input, Power supply included

You can make your CCTV Lens purchase here.

Includes:

  • 1x Camera
  • 1x Bracket
  • 1x 12V 500mA power supply



Specifications:


Image Sensor
1/3" CCD

Picture Elements
(Horizontal x Vertical in mm)
EIA/NTSC 768(H) x 492(V)

Horizontal Frequency
EIA / NTSC : 15.734 KHz

Vertical Frequency
EIA / NTSC : 59.94 Hz
  Clock Frequency
EIA / NTSC : 19.0699 MHz

Resolution
560 TVL Color / 620TVL Black and White

Minimum Illumination
0.001 Lux Slow Shutter 32X

Scanning System
2:1 Interlace

Signal to Noise Ratio
50 dB

Electronic Shutter Speed
1/60 - 1/120,000 sec

Video Output
1.0V p-p/75 Ohms

Gamma
0.45

Power Supply
12V DC
  Power Consumption 150mA

Weight
305g
  Dimensions 118x50x58 mm

Storage Temperature
-30°C to +60°C

Operating Temperature
-10°C to +45°C

Note: Lens sold separately.

Additional Information

Warranty 1 Year
Return Policy 30 Days Return Policy
