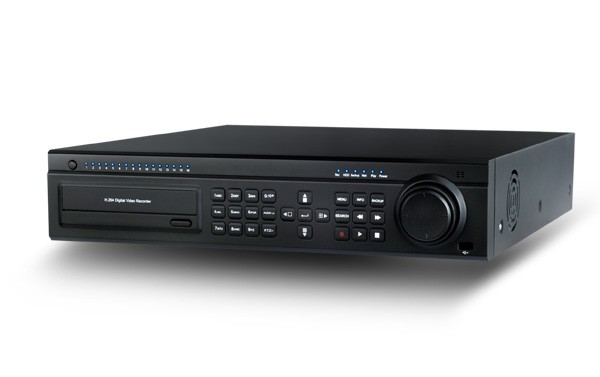

16 Channel DVR H.264, SE Series

Item # 8616MDH

Be the first to review this product


Availability: In Stock

* Required Fields


16 Camera H264 DVR

More Views


Big Price Reduction on this Safari and Mac compatible 16 Channel DVR.

This high end DVR records at the highest resolution possible for a CCTV DVR at D1 resolution (720 x 480) at up to 120fps for all 16 cameras. You can pack this DVR full of storage space, it supports up to 8 Terabytes of hard drives, that means you can install up to four 2TB hard drives and record for months of video. This DVR has 16 BNC video inputs as well as 16 RCA audio inputs for your audio cameras or microphones. For video outputs, it comes with two BNC video outputs (one for monitor and one for spot), one VGA output to connect any VGA LCD monitor or computer monitor, and a high definition HDMI video output to connect a flat screen tv. It also has one RCA audio output to listen to audio that you might be recording.

You can expect the best from this DVR when it comes to remote connectivity. It supports remote login over the internet using Internet Explorer on any Windows based PC, and supports the iPhone, Google Android phones, most balckberry phones like the Torch, Nokia symbian phones, and Windows Mobile based phones. For video backup you have several choices. You can either save to a usb flash drive using the USB port on this DVR, or download video over the network using the software that comes with this DVR. Best of all the video is playable on any computer using the free VLC media player.

Of course, let's not forget this DVR has built-in video motion detection capabilities. You can select cameras and set sensitivity levels and areas within each camera where you want this 16 channel DVR to monitor for motion. This way you can record on motion and save hard drive space, and also instruct the DVR to alert you via email when motion is sensed. Besides motion triggered recording, you can set schedule based recording to record on set day and time, or manual recording. If you want to get really fancy, you can even tie in motion sensors and other alarm sensors to trigger recording.


  • 16 Camera and 16 Audio H264 Digital Video Recorder
  • Standalone DVR recorder that does not have to be connected to a PC
  • Pentaplex function DVR
  • Simply connect your cameras and connect a monitor or TV and you are set
  • Supports up to Four 2 TB Hard Drives for a total of 8 TB of Storage Space
  • Includes DVR Burner
  • Multiple video outputs:
    • HDMI for High Definition 1080p
    • VGA up to 1920x1080 pixels
    • BNC Video Out and Spot Out
  • Records at the highest resolution video in the industry
  • D1 Resolution Video Viewing and Playback
  • Easy to use graphical interface that can be used with the included mouse point and click operation
  • VGA monitor output to connect any computer monitor or large screen display with VGA connection
  • Uses the FAT32 file system for hard drive storage, so hard drives can be read with a PC
  • Remote viewing and playback over the internet using Internet Explorer and most mobile phones
  • Supports iPhone, Android, Black Berry, Nokia Symbian, and Windows Mobile based phones
  • Also support Safari browser for video viewing and playback (audio not supported on Safari)
  • Motion activated recording function
  • Calendar and time based recording
  • Alerts via email when motion is triggered
  • Comes with a Central Management software to manage up to 4 of these DVRs from one location
  • Supports a AVI file converter to convert video so that it can be played on any computer
  • Dynamic DNS support
  • Video back up over USB to a FAT formatted flash drive
  • User access management
  • Log management to monitor the health of the system
  • Email alert, or FTP file upload on motion detection or alarm trigger
  • RJ45 Ethernet network port on the back of the DVR that you connect to your router or Cable/DSL modem to place the DVR online


  • 1x 16 Channel H.264 DVR
  • 1x Power Supply for DVR
  • 1x USB Mouse
  • 1x Software CD with instructional manual
  • 1x Hard Drive Screws
  • 1x Handheld remote control


Compression format Standard H.264 Baseline
Video Input Composite: BNC ×16; 1.0Vp-p/75Ω
Output Composite: 2x BNC, 1.0Vp-p/75Ω
High Resolution VGA: 1280×1024
HMDI: 1080P (1920×1080 )
Loop output: BNC ×16, 1.0Vp-p/75Ω
Record Resolution 352×240/704×480  (NTSC)
352×288/704×576  (PAL)
Frame Rate Display 480fps(NTSC) @D1
Record 480fps(NTSC) @CIF / 120fps(NTSC) @D1
Playback 480fps(NTSC) @CIF / 120fps(NTSC) @D1
Audio Input RCA×16
Output RCA×1
Alarm Input 16CH
Output 4CH
Recording Mode Manual, time/calendar based, motion activated, alarm sensor based
Pentaplex Function preview, record, playback, backup, remote access
Network Interface RJ45  10M/100M/1000M Ethernet
PTZ YES  RS485 128presets, 32 cruises
IR controller YES
Communication Interface RS485 x 2, USB 2.0 x 2
HDD Internal: SATA x4
Power Supply 110-230V
Dimension 17" x 17.72" x 3.55" (WXDxH)

Additional Information

Warranty 2 Year
Return Policy 30 Days Return Policy
