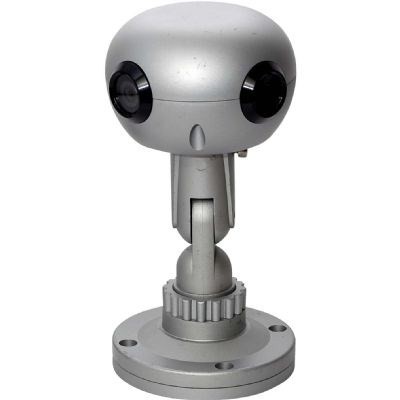

180 Degree View Camera

Item # HDC500

Be the first to review this product


Availability: In Stock


Wide View Camera

More Views


This is one of our special cameras that we have made for those important areas where you have room to only put one camera and need a 180 degree viewing angle without any distortion. This camera runs at an amazing 560 lines of resolution and has a 180 degree angle of view.  There are no blind spots with this camera. You basically get two 90 degree view cameras built in to this OWL like housing. Wherever you mount it, you will have no problem seeing all around.  This is one of the best wide angle cameras we offer.  Runs on extremely low power and has day and night capability thanks to its ability to switch to black and white mode in low light. Since this camera does not have infrared we fo recommend have some lighting in the area it is mounted. It is easy to install and comes with a 3 axis bracket that allows the camera to be mounted on a wall, ceiling, slanted surface or flat surface.


  • Outdoor Weather Proof Camera Suitable for use in any weather
  • Wide Viewing Angle of 180 Degrees Total
  • Distortion Free 180 Degree View
  • No More Blindspots!
  • 2 Video Outs (Video1 and Video2)
  • Limitless Observation Angle 90°+ 90°
  • Extremely Low Power Consumption
  • 1/3" SONY CCD with 560 Lines Resolution
  • Day & Night Capability
  • 3 Axis Bracket


  • 1x Camera
  • 1x 12V power supply


Image Pick-up Device 1/3" SONY SUPER HAD CCD
TV System NTSC
No.of Pixels 768(H) x 494(V)
Scanning System 2:1 Interlace
Sync System Internal Sync
Resolution 560 TV Lines
Minimum Illumination 0.1 Lux
S/N Ratio More Than 46dB
Gamma Characteristic 0.45
Video Output CVBS1/CVBS2:1.0Vp-p75Ω
Electronic Shutter Time NTSC=1/60 - 1/100,000 Sec
Power Supply DC 12V
Power Consumption 250mA
Lens 3.8mm + 3.8mm Fixed Board Lens
Operation Temperature -10° - +50° C RH 95% Max.
Storage Temperature -20° - +60° C RH 95% Max.
Dimension 98mm(W) * 197mm(H) * 133mm(D)
Weight(kg) 1.2Kg

Additional Information

Warranty 1 Year
Return Policy 30 Days Return Policy
