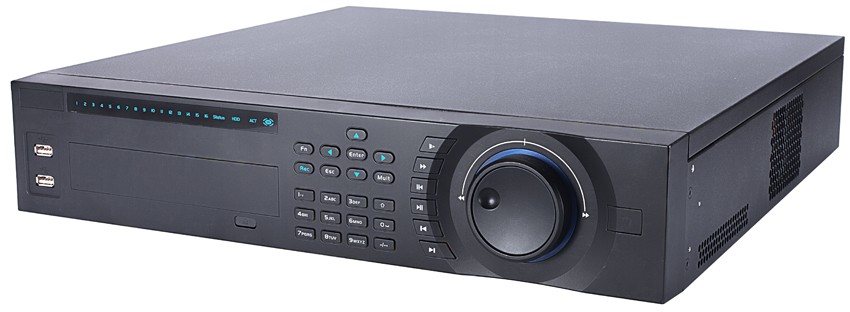

32 Channel DVR H.264 Business Series

Item # DVR32S

Be the first to review this product

Availability: Out of stock

Regular Price: $1,199.00

Now only: $999.99

32 Channel H.264 DVR

More Views

Sale

Details

32 Channel DVR with 16 Audio Inputs, H264, iPhone iPad Android Viewing

All of our security Digital Video Recorders feature an embedded Linux Operating System that allows for rock solid stability and operation, remote monitoring from anywhere in the world using a smartphone or computer, and H.264 video compression for the best possible video recording quality. This is NOT a PC based DVR which is subject to viruses and hacking. This is a standalone DVR unit built for only one purpose - the best quality CCTV video recording in the world. Although you will need a monitor during the initial install of the system, once the install is complete the monitor can be removed, as it is not required for normal operation of the system. If you tie the system into your network, you will not even need a monitor to view your DVR.

Our DVRs are state-of-the-art in digital surveillance technology. They are made of professional grade components and are manufactured to industrial standards to last for a long time. You will not find this quality at a consumer electronics store or from supposed brand names at Costco/BJ's/Samsclub or Amazon. Their advanced functionality in recording options and quality, video playback and search, storage options with backup, and remote viewing over the internet, make them one of the best standalone systems on the market today.

Remote Viewing
The built-in Web server allows you to perform almost every function of the DVR remotely with Internet Explorer or the Remote Client Software. The Remote Client Software is included for Free! It allows you to control and monitor multiple DVRs simultaneously from a central location. Two-way audio over the network or Internet is also standard on our Professional Series DVRs. So, not only can you hear what is going on, you can interact by attaching a microphone and speaker to the DVR. This DVR supports up to 10 simultaneous network or Internet users. With Dynamic DNS support, it is not necessary to have a static IP address on your network in order to remotely access this DVR. This saves you money, as most internet service providers charge extra for a static IP address.

Smartphone, Windows and Mac Compatible iPhone and iPad Compatible

Video Input and Output
This unit is all about versatility. With HDMI, VGA and BNC Video outputs, you can output identical views of up to 32 cameras in a grid to 3 different monitors simultaneously. And, with the included Matrix output, you can also run a separate monitor that can be programmed to display a completely different series of cameras!

Recording Quality
This is the highest quality 32 Camera Standalone DVR available anywhere in the world. This High Capacity DVR is able to record at 2CIF resolution in Real Time or at D1 at half Real Time on every channel. It is also able to hold up to 8 Hard Drives inside for a total of 32TB of storage when configured without a burner, making it the highest capacity Standalone Security DVR on the market today in its price range. Match this capability against any other DVR on the market today and you will see why this is truly a High Capacity DVR! It is ideal for use in casinos, for license plate capture, facial detection or anywhere that high resolution images are important.

Ease of use and playback
All of our DVRs are amazingly simple to setup and operate. An intuitive mouse-driven interface provides very simple point-and-click control over all functions and settings. In addition, the unit also includes a handheld remote control. The jog shuttle or mouse can be used to easily fast forward, rewind, and advance frame by frame. Up to 32 Cameras can be played back at the same time at the DVR, and 4 channels can be played back via the web interface or client software for the computer.

Motion or Alarm based notification
Having the ability to remotely view your system is great, but what if you are on the road and just can't monitor your system all the time. This is no problem with the Professional Series DVRs email capability and push notification on the smartphone. For email notification, just set up a standard POP email account like Gmail or Yahoo and have the DVR system email you based on motion detection on any or all cameras you choose. The push notification feature available with the HD remote view app allows you to receive alerts from the DVR to your iPhone, iPad, or Google Android Phone or Tablet.

Storage Capacity
Storage capacity will never be a problem with this Professional High Capacity Series DVR. Up to 8 SATA hard disk drives can be installed if no burner is mounted, and up to 6 SATA drives can be installed if you choose to install a DVD Burner. For advanced users there is user selectable RAID hard disk management that mirrors hard drives to keep your data safe from hard drive failures. There is also the FTP backup and recording functionality which allows you to do live or delayed backups of your video to a remote computer or server.

Video Backup
All of our DVRs come with a USB 2.0 port for easy off-load of recorded video to a USB flash drive or external USB hard drive. With the high capacity DVR's optional DVD Burner, you can also backup recorded video to DVD-R discs. Thirdly, all of our DVRs have the ability to download recorded video over the internet directly from the web interface or client software to your computer.

PTZ Control
Our DVRs are compatible with multiple PTZ protocols on the market including Pelco-D and Pelco-P so you can use your existing cameras with this DVR. The easy 3D mouse operated PTZ control allows you to control any PTZ camera from the DVR. Just click on the screen and drag your mouse around. The PTZ camera follows the mouse pointer so you can smoothly and accurately follow any objects of interest. Best of all, you can control your PTZ cameras remotely over the internet using your phone or computer.

2 Year Warranty
This unit comes with a 2 Year Warranty against any manufacturing defects. We service our items ourselves, so rest assured the turn around time will always be as quick as possible. We also offer loaner DVR units in case you need one.

Lastly, we provide support for every step of your installation project.

Features:

  • 32 Camera Video and 16 Channel Audio Recorder
  • H.264 hardware codec for the best video image quality in the industry its price range
  • Real Time Live Display at D1 Resolution (704 x 480 at 15fps) allows you to have full-motion fluid moving video
  • Real Time Recording at 2CIF Resolution (704 x 240 pixels at 30 fps)
  • Half Real Time Recording at D1 Resolution (704 x 480 at 15fps)
  • Supports remote view over internet using your smart phone, Windows PC, or Apple Computer
  • Supports iPhone, iPad, Android phones and tablets
  • Comes with Apps and Computer Software free of charge for remote viewing
  • Selectable recording video quality levels
  • Supports up to 8 internal SATA hard drive up to 4TB in capacity
  • Multiplex operation allows you to carry out multiple tasks on the DVR simultaneously
  • Allows user to view live video, playback recorded video, record video, backup video, and access over network all at the same time without ever stopping recording
  • Authorization management so only viewer with a username and password can view video
  • Supports multiple user accounts with selectable authorization levels
  • Easy to use DVR menu featuring point and click navigation (mouse included)
  • Independent camera settings customizable for each camera:
    • Video Loss Alarm
    • Motion Detection
    • Alarm Settings including trigger of built-in buzzer alarm, log events, and inform via text email
  • Full feature set of controls (all free of charge) when remotely viewing over internet through Internet Explorer or with the included viewing software for your computer:
    • View Live Video from all 32 Cameras in a grid or each camera individually
    • Playback recorded video from 4 selectable cameras in a grid or each camera individually by selecting time of video or logged events of motion detection
    • Backup video segments over internet on to PC or to a flash drive
    • Bandwidth Management for slow internet connections so smaller images are displayed faster
    • Supports up to 10 remote viewers at the same time
    • Email alert when motion is sensed or alarm is triggered (text based email)
  • Included software allows control of multiple DVRs from one location
  • Dynamic IP address supported thanks to built in DDNS support
  • Video Output:
    • High Definition HDMI Output at 1080p
    • VGA output at 1024x768 or 1280x1024 Resolution to connect any computer VGA monitor
    • BNC video output to connect regular TV
    • BNC Video Spot output for accessory monitor
  • USB port for easy video backup to a USB flash drive
  • Selectable automatic video overwrite function lets you decide if you want to record over oldest video first when hard drive is filled up
  • Hand Held Remote Control Included



Specifications:

Compression format Standard H.264 Baseline
OS Embedded Linux
Video Input BNC×32
Output BNC × 2; VGA ×1; HDMI x 1
Record Resolution 352×240/704×480  (NTSC)
Frame Rate Display 960fps (D1)
Record

30fps at 2CIF on 32CH, or 15fps at D1 on 32CH

Audio Input BNC×16
Output BNC×1
Recording Mode Manual, time, motion triggered, sensor
Display 1920×1080, 1280×1024, 1280×720, 1024×768
Display Overlay Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Pentaplex operation preview, record, playback, backup, remote access
Network Interface RJ45 Gigabit Ethernet Port
Alarm Input 16
Alarm Output 5
RS232 1 Port for POS or PC communication
PTZ YES RS485
IR controller YES remote control included
Communication Interface USB 2.0 x 4
e-SATA 1x e-SATA for backup, or special drive array up to 16TB
HDD SATA x 8 up to 4TB (total 32TB)
Power Supply 12V DC
Average Operating Power Less than 30W without HDD

Additional Information

Warranty 2 Year
Return Policy 30 Days Return Policy
