36X Zoom Pan Tilt Zoom Camera

Item # PTZ636

Be the first to review this product

Regular Price: $1,150.00

Now only: $999.99

Availability: In Stock

Regular Price: $1,150.00

Now only: $999.99

444X Zoom Super DiGiDome Outdoor PTZ Camera

More Views

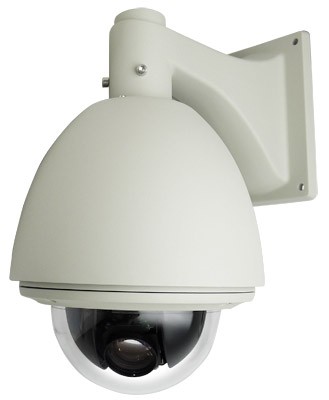

Super DiGiDome PTZ Camera - 36X Optical Zoom / 12X Digital Zoom, 650TVL 0.001Lux


When it comes to quality and features too numerous to name, you've arrived with this setup. This camera is truly the best in its class! However let's start with the basics: This Pan, Tilt and Zoom setup is designed to offer several choices for installation of Exterior applications. You may mount the Dome via a Wall mount, Pole mount, or a Ceiling mount. Our Color Super DiGiDomes Panning & Tilting capabilities offer you the ability to Pan it right, left, Tilt it up or straight down, including endless 360 degrees rotation! Also included is Preset Positioning -- you're able to store into the memory of your Keyboard Controller various camera positions that are frequently traveled. No need to grab the Joystick knob and turn your camera to that position, merely press a number (1-255) on your Keyboard and your camera will zip on over to the number's corresponding position. There's also a Tour mode that enables you to create and save frequently traveled areas all by merely pressing a button! Pretty nifty eh? You'll also receive an 180 degree Auto-Flip feature. Let's say you're following a subject and they travel directly beneath the camera and beyond, as the camera reaches the position of pointing straight down, it automatically rotates/flips 180 degrees and then continues - your screen always remains in a vertical position! On a camera without this feature, you would have the hassle of 'manually' rotating the camera 180 degrees to maintain a vertical picture. And did we mention incredible Zooming features? Oh yes, let's do. The magnification of our Color Digital DSP 1/4" Sony Super HAD CCD camera with SONY Effio offers an incredible 444x Zoom! That's right. That's a 3.5mm to 129.5mm Optical 36x and a Digital 12X zoom which is incredible to say the least. Now here's where it gets crazy - expect to receive the highest resolution level for a color camera! 650 TV lines and an astounding 0.01 lux rating while in its Color mode, but then in low lighting, it automatically changes to its Black and White mode (thanks to its Day and Night CCD) where it's able to view in a whopping 0.001 lux! Lets us translate that -- That's incredible!!  Built-in Auto Iris, Back Light Compensation (BLC), Digital Wide Dynamic Range (DWDR), Internal Line lock, Negative Image including a Programmable On Screen Display (OSD) and Built-in Auto Focus! Yes, with this feature you'll never need to focus the camera. Simply aim in the direction you desire and the camera focuses automatically! Talk about saving you precious time...

And speaking of you saving time, when you purchase from us you can expect to receive your PT Domes with the Camera Auto-Focus setting ON (as most prefer), Jumper pins set accordingly (depending on purchase quantity), already installed and mounted within the Dome enclosures. Folks, put plainly, systems as sophisticated as this normally require a professional technician, however we believe we've relieved you of that burden.


All you need is a controller and wiring and you're set!



  • Outdoor Weather Proof Camera
  • 9 inch diameter Speed Dome Housing
  • All aluminum construction
  • Day and Night SONY 1/4" CCD that switches to black and white in low light
  • 600 TVL Color Resolution 0.01 Lux
  • 650 TVL Black and White Resolution 0.001 Lux
  • 3.5mm to 129.5mm Optical Zoom Lens
  • 36x Optical Zoom / 12X Digital Zoom  - Total 444X zoom
  • Wide Dynamic Range - DWDR
  • Built-in On screen display menu that let's you configure cruise modes, auto presets, and zones
  • 255 presets (can be labeled with editable title)
  • 5 Programmable Scan Tour
  • 5 Programmable Pattern Tours
  • Pans 360 degrees continuously
  • Tilts 90 degrees, automatically flips camera 180 degrees when you reach the other side, giving a continuous 180 degree tilt
  • Lightning proof and surge proof protection TVS 1500W
  • IP66 weather proof housing for all weather use
  • RS485 control through any PTZ controller
  • Supports Pelco-D, Pelco-P, Panasonic, Samsung, and other PTZ protocols
  • 24V AC Power Supply Included


  • 1x Pan Tilt Zoom Camera
  • 1x 24V AC Power Supply
  • 1x Wall mount bracket


Image Sensor Day & Night 1/4" SONY CCD
Effective Pixels 768 (H) x 494 (V)
Resolution 600 Color / 650 TV Lines BW
Min. Illumination 0.01 (Color) / 0.001 (BW)
S/N Ratio More than 48dB
Focus & Iris Automatic / Manual
Lens 36x Optical Zoom, 12x Digital Zoom
Angle of View Wide 70 / Tele 1.0
Backlight Compensation BLC / HLC / DWDR (Digital WDR)
Noise Reduction 2D / 3D
Decoder Built-in
Motor Stepping Motor
Synchronization Internal / External
Preset 128 Presets, Can be Labeled with Editable Title
Pan Range 360° Continuously
Pan Speed 0.1 to 250 degrees per second
Tilt Range -2° to 90°, Auto flip 180°
Tilt Speed 0.1 to 150 degrees per second
Preset Find Time < 1.0 Second
Communication RS-485
Protocol Pelco-P, Pelco-D, Panasonic, Samsung, etc.
Operating Temp. -30°~ 60°C
Humidity 0-95%
Protection Grade IP66, TVS 1500w Lighting-proof & Surge-proof
Dimension 13 inches tall x 9 inches diameter
Net Weight 12 lbs approximately

Additional Information

Warranty 1 Year
Return Policy 30 Days Return Policy
