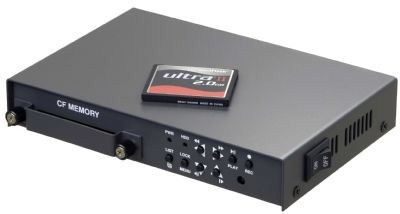

4 Channel Mobile DVR Video Recorder

Item # MDVR04JLC

Be the first to review this product

Availability: Special Order, Call for availability


4 Channel Mobile DVR Video Recorder

More Views


MDVR04JLC is a four channel Mobile DVR (Digital Video Recorder), which designed to be used in mobile recording situations. It comes with a compact, shockproof and less-power consuming CF-Card interface in order to maximize its effectiveness in mobile recording. Technically, CF-Card doesn’t have any moving parts inside so that it provides a great shockproof advantage over a normal hard disk drive (HDD). MDVR04JLC is built based on non-PC type operating system (OS), so it won’t just freeze up while it is in operating and it won’t get malicious viruses or worms from the Internet, either. Additionally, easy graphical user interface (GUI) makes even PC-phobic users can operate the system without any difficulties.


  • Triplex (Record/Playback/Live)
  • Affordable / Excellent Picture Quality / Easy to use
  • Full / Quad Display Mode
  • Programming MENU in OSD(On Screen Display)
  • Motion Detection Function (230Lists) * Quick Search : Time
  • MJPEG Compression
  • Real Time Quad Display
  • Stand Alone Type (Non-PC, Non-OS)
  • Motion-triggered recording
  • IR-driven Remote Controller
  • Uses CF Memory Card for recording medium
  • Accepts Compact Flash Up to 32GB
  • No memory card included


Video Signal
Input 4 × RCA Vp-p 75Ω
Output 1 × RCA Vp-p 75Ω
Input / Output 1 × RCA Out / 1 × RCA In
Recording Mode Mono PCM
Display Frame 120 FPS
Display Resolution 720 × 480
Screen Split Mode Full, Auto, Quad
Mode Duplex (Simultaneous Recording / Playback / Live)
Video Compression Real–time full duplex M–JPEG CODEC core
Video Resolution 720 × 480 / 360 × 240
Recording Method Continuous, Scheduled, Event (Motion Detect)
Recording FPS 120 FPS
Image File Size 3 ~ 25 KB
External CF Memory MLC, SLC Type of CF Memory Card supported
Playback Mode Live & Playback, Playback
Playback Screen Mode Full, Quad, Split
Search Search by Date / Time List, Event List
External Alarm Input Alarm Input : Terminal Block 1
Remote Control IR Remote Control, RS-485
Power Supply 12V 3.5A DC Adapter (Locking wafer type)
Dimension Set : 159 x 105 x 28 (mm), Board : 138 x 91 (mm)
Weight 0.5 lbs

Additional Information

Warranty 1 Year
Return Policy 30 Days Return Policy
