Details

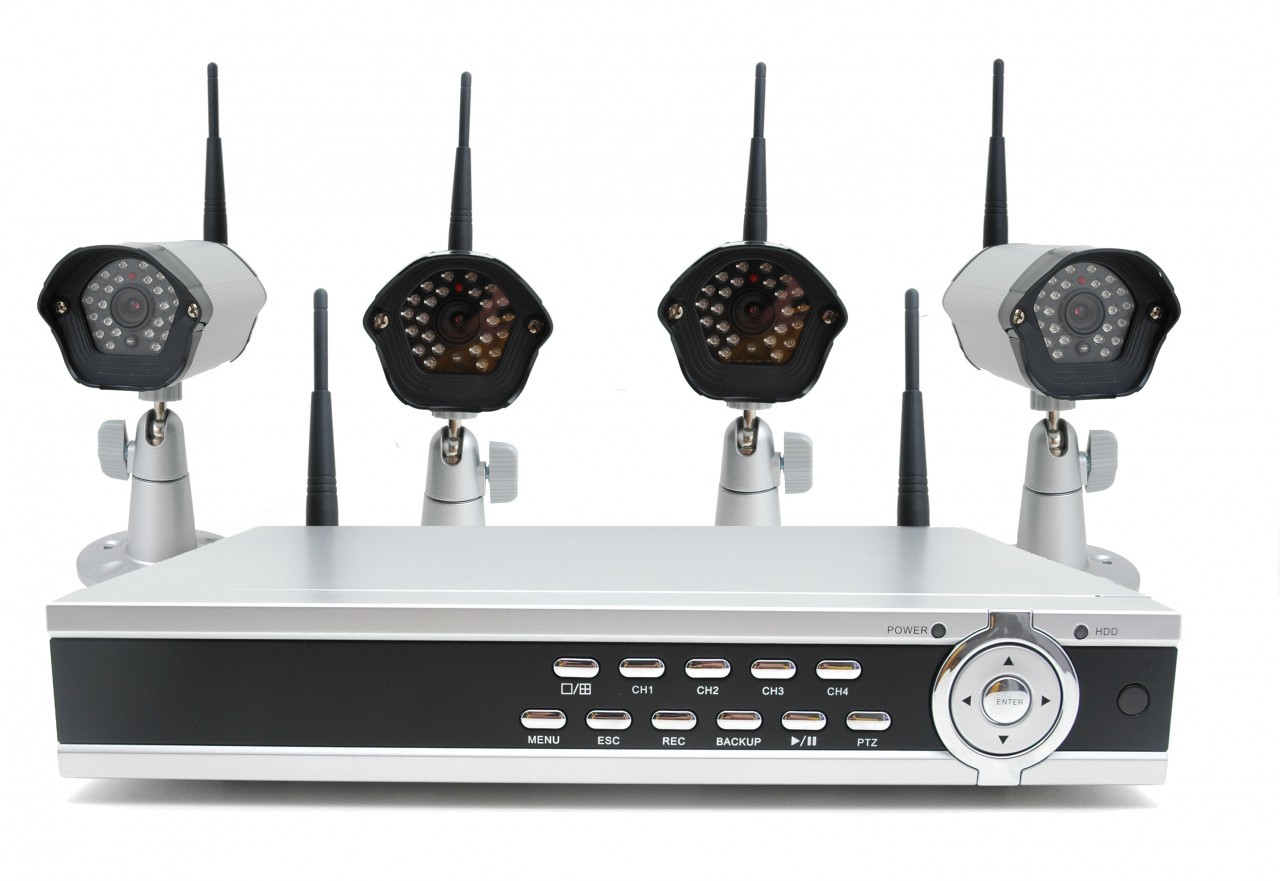

Wireless technology has never been so affordable and easy to use. This 4 camera security system comes pre-programed. That means to set up the system all you'll have to do provide power and the system will do the rest. These cameras support wireless transmission up to 300ft line of sight to bring you a very clear picture of 420 TV lines for facial recognition up to 25ft. This camera is also rated for indoor and outdoor use year round with a night vision range up to 60ft.
The DVR in this system comes equipped with smartphone and computer live viewing. This DVR is also equipped with the latest in video compression technology H.264, which means your recording will be the highest quality and still take up the least space on your hard drive. This DVR also comes with continuous/Schedule/Alarm/Motion Detect, Individual channel schedule recording setup.
Features:
- H.264 Baseline - 4 recording video quality or user defined
- Multiplex 4CH H.264 DVR: live, recording, playback, backup, network access and control
- Privacy Mask, Video Loss, Alarm schedule, PTZ, remote/mouse control
- Support 1 x SATA HDD up to 2TB, USB Backup with AVI/MPEG4/H264 formats
- Alarm 4CH In and 1CH Out, Audio 1CH In/1CH Out / TV out and VGA out(up to 1280 x 1024)
- Rotation Display and lock cameras(only Admin can view locally/remotely)
- individual channel setup for schedule, resolution(CIF, HD1, D1), video quality, and FPSv
- Multiple channels linkage recording for Motion and Alarm
- CMS and Mobile Streaming Players for 3G/3.5G mobile phone/PDA (Symbian/Windows Mobile/iPhone/iPad/Blackberry/Android)
Specifications:
| Wireless Camera Power | 10mW~100mW |
| Frequency Range | 2402~2478MHZ |
| Input Signal Level Range | -85~-10dBm |
| Camera Wireless | CMOS Camera(24IR)x4 |
| Video Compression | MPEG4 |
| Wamera FPS and Resolution | VGA:640X480-30fps |
| RECEIVER Antenna | Omni-Directional(Antenna Gain 3dBi)x2 |
| Modulation | GMSK |
| Data rate | up to 4Mbps,100M transmission distance(open site) |
| Noise Figure | 3dB |
| Video Input/Output Format | NTSC/PAL: BNC 1CH In/1CH Out |
| Display Resolution | NTSC 704 x 480, PAL 704 x 576, real time per channel |
| Compression Method | Video: H.264 Audio: ADPCM |
| Recording / PLAYBACK | NTSC 60/704 x 480, 120/704 x 240, 120/352 x 240 |
| Frame rate(FPS) & Resolution | PAL 50/704 x 576, 100/704 x 288, 100/352 x 288 |
| Recording Time | 7~23 days with 500GB HDD for Continuous Recording mode@25fps |
| Recording Mode | Continuous/Schedule/Alarm/Motion Detect, Individual channel schedule recording setup |
| Hard Disk Capacity | 1 x SATA HDD up to 2000GB |
| Media Backup | 1 USB 2.0 ports for Flash Disk, DVD Burner, portable HDD backup. |
| Sensors, Alarm | 4 Inputs, 1 Output(NC, NO relay) |
| Alarm Type | Motion, Sensor, Video loss, Multiple channel Recording for Motion and Alarm |
| Audio | 1CH Out |
| Network | RJ-45 10/100BaseT Ethernet connector(PPPoE, DHCP, DDNS, Static IP),UPnP and FTP |
| I/R Remote Controller | Yes |
| Power Supply | DC12V/5A for AC Adaptor |
| Operating Temperature | 0°C ~ +40°C |
| Dimension | 315(W)x224(D)x52(H)mm |
Additional Information
| Warranty | 1 Year |
|---|---|
| Return Policy | 30 Days Return Policy |
