Details

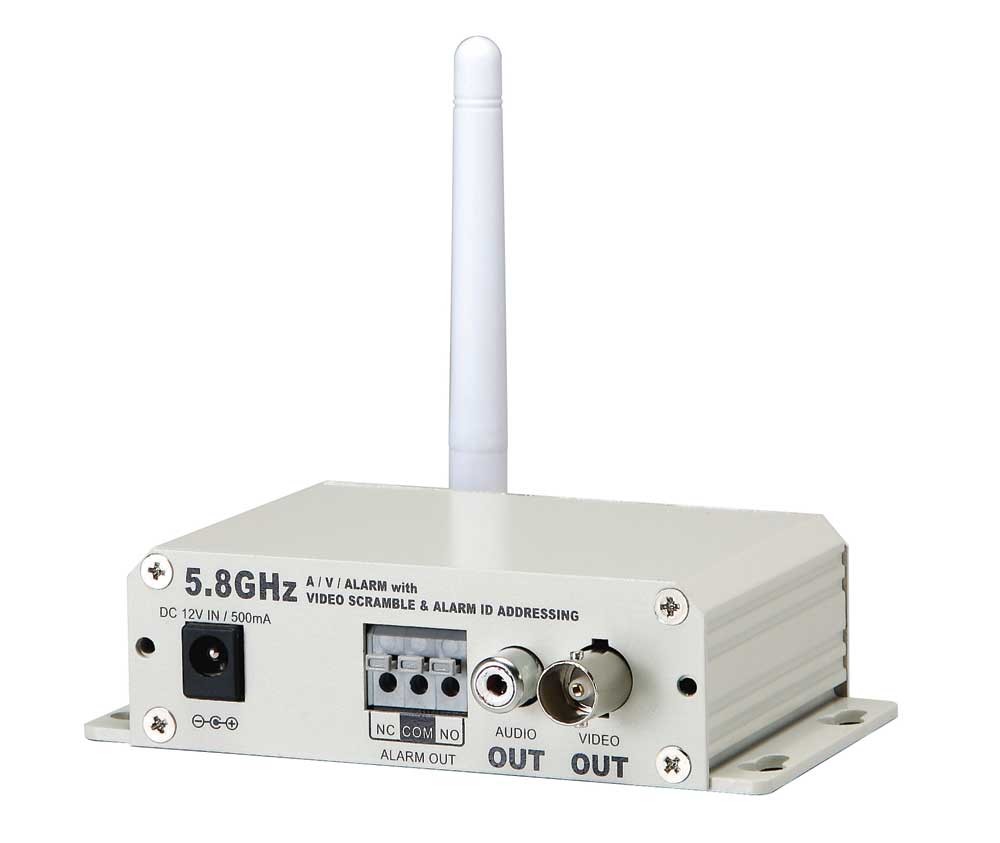

5.8GHz Wireless Receiver for use with its matching 5.8GHz Wireless Video Transmitter. This unit unscrambles the wireless signal transmitted by the TV5800 wireless transmitter. It receives both audio and video signals from the transmitter.
Features:
- 5.8GHz Wireless Frequency to prevent interference from 2.4GHz wireless WiFi networks and cordless phones
- 300ft Reception distance in line of sight without obstructions, with included 3dBi Omni Directional Antenna
- Up to 3000ft wireless video reception with our 5.8GHz high gain directional antennas that are 11db or higher
- Easy to use design with 8 manually selectable video channels for transmission
- Use of up to 4 simultaneous transmitter/receiver kits possible without interference
- More transmitter/receivers kits can be used in one location with the use of directional antennas
- RCA Audio and BNC Video Input that easily connect to Video Camcorders, DVRs, VCRs, or Security Cameras
- Compatible with matching wireless transmitter
- Built-in video scrambling and ID addressing to maintain privacy
Box Contents:
- 1 x 5.8GHz Video Receiver
- 1 x 5.8GHz Omni directional antenna 3dBi
- 1 x DC Power Adapter
Specifications:
| Frequency Channels | 5725 - 5875 MHz, 8 CH | |
| RF RX Power | 10mW | |
| RF Impedance | 50 Ω | |
| BNC Video Ouput | 1.0 Vp-p Composite @ 75Ω | |
| RCA Audio Output | 3.0 Vp-p Max. (600Ω) | |
| Alarm | Level Detection (5V TTL) | |
| Power Consumption | DC 12V/250mA (Start-up Current: DC 12V/500mA) | |
| Operation Temp | -10°C ~ 50°C | |
| Storage Temp | -30°C ~ 85°C | |
| Dimensions |
11 x 8.8 x 3 cm (without Antenna) |
Additional Information
| Warranty | 1 Year |
|---|---|
| Return Policy | 30 day return policy |
