700TVL Vandal Proof Dome Camera

Item # 2370AVA

Be the first to review this product


Availability: In Stock

* Required Fields


700TVL Vandal Proof Dome Camera

More Views

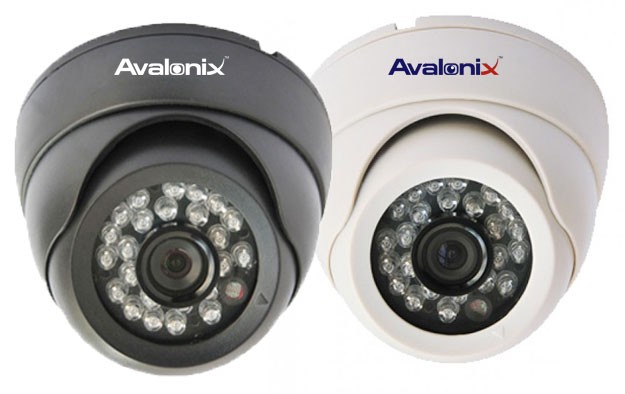

700 TV Lines in Resolution! This indoor vandal proof dome camera with infrared is perfect for places where the camera may be in reach of vandalizing intruders. The vandal proof metal casing is very difficult to manipulate once the camera is installed, and can withstand a light blow as well. The SONY Effio-E image sensor provides 700 TV Lines of resolution which gives excellent video quality during day and night, with facial clarity up to 15ft, and 65ft of night vision to see whose lurking out there. The camera has a 3.6mm lens that provides a 80 degree wide angle of view.

This camera is available in two shell colors: white or dark grey




  • 1/3inch SONY Effio-E image sensor
  • 700 TVL Resolution crisp clear video
  • 24 High Intensity infrared (IR) LEDs for Night Vision up to 65ft
  • Fixed Lens 3.6mm for 80 degree angle of view
  • Metal Vandal Proof Housing
  • Wall or ceiling mount capable
  • 3 Axis Adjustment for 360 degree rotation of camera by hand
  • Sony Effio-E OSD Menu
  • BNC Video Output
  • 12V DC Power Jack


  • 1x Dome Camera
  • 1x 12V 500mA power supply


Avalonix 700 TVL Resolution Sony Effio-E Technology

Higher horizontal resolution over 650 TVL. Confirmed maximum resolution to achieve true 700 TV Lines of Resolution.
Digital Noise reduction (DNR) is a function that reduces the image noise to improve the image quality of the camera. In particular, it reduces the noise which is generated under low light conditions and other high-gain states.
The Effio-E comes with a space-based Noise Reduction function.
Excellent color reproduction under variety of light sources [1,800K to 10,500K Lumes]
Preset OSD Menu: The "Effio-E" signal processor includes OSD (on-screen display) functions that allow camera settings to be made using the joystick or button controller located on the camera cable or inside the camera.
ATR/ATR-EX: The ATR (Adaptive Tone Reproduction) function provides gradation compensation to improve the contrast of subjects whose gradation has been lost in cases where, for instance, both low-luminance areas and high-luminance areas exist in the same picture.
The ATR function improves the visibility of the entire picture by providing optimum gradation compensation for the image in one field based on the luminance information.



Image Pick-up Device 1/3" SONY Super HAD II CCD
Effective Pixels NTSC: 811 (H) X 508 (W)
Video Format NTSC
Horizontal Resolution 700 TV Lines
Minimum Illumination 0 Lux (IR LED On)
Backlight Compensation Auto
White Balance Auto
Gain Control Auto
Sync. Internal/External Sync
S/N Ratio >50db
Electronic Shutter NTSC:1/50 -1/10,000Sec
Infrared Wavelength 850nM
IR LED Auto On/Off Day / Night
Built-in Lens Fixed 3.6mm
IR LED Distance 65ft
Video Output 1.0Vp-p 75Ω
Operation Temperature 0-112 Degrees F
Power Supply DC12V 300mA
Dimensions 98mm(D)×70mm(H)

Additional Information

Warranty 1 Year
Return Policy 30 Days Return Policy
