Vandal Proof Outdoor Dome Camera

Item # 2570AVA

Be the first to review this product


Availability: In Stock


Vandal Proof Outdoor Dome Camera, 700TVL

More Views


This is the highest resolution Outdoor Vandal Proof Dome Camera on the market, that is meant to be mounted on a wall. It has the newest SONY Image Sensor that provides 700 TV Lines of Resolution in Color. Don't be fooled by our competitors using the Black and White Resolution to upsell their products. It has 30 high intensity infrared LEDs for night vision up to 80ft in complete darkness, and farther if you have some other lighting around. You can manually adjust the lens at time of installation from 2.8mm for a wide angle view of 90 degrees to see things up close or set it all the way to 12mm for a 4.5x zoom to see objects that are 60ft away and farther.

This is not your ordinary dome camera because of the Sony Effio 700 Line Resolution Sony image sensor that it has. It also has a on screen display menu (OSD) that you can control with the button located on the camera cord to change several camera settings. You can control several different video quality parameters using the OSD menu built-in to the camera. Read the description below to see the difference between this 700TVL camera and other lower resolution cameras on the market.

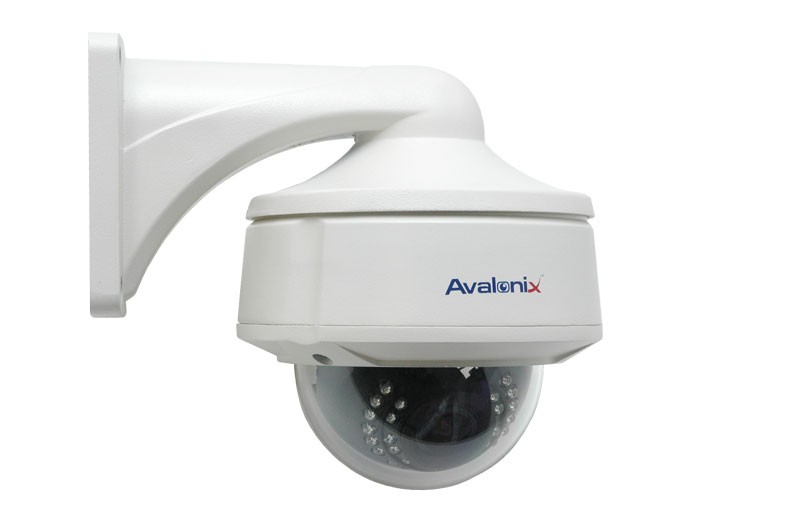

The camera is Vandal Proof so it can withstand a hit from a rock or bat. It has a 3 axis design that lets you position the camera inside the dome at virtually any angle you want, and also has a the pigtail running through it to prevent cable cutting. This camera comes with its wall mounting bracket as shown in the picture that is built in to the camera, and a 12V DC 1000mA power supply.


  • Vandal Proof and Weather Proof Outdoor Dome Camera
  • SONY CCD Color Camera Sensor
  • SONY Effio-E Singal Processor
  • Day and Night Camera
  • 30 Infrared LEDs - 80ft Night Vision
  • 1/3" Sony CCD Image Sensor provides crisp 700 TV Lines of Resolution
  • 0 Lux Rating with Infrared On
  • 0.001 Lux with Infrared Off so you can see in color in very dim environments
  • Adaptive Tone Reproduction (ATR)
  • Digital Noise Reduction (DNR)
  • IP66 Weatherproof rating to withstand rain or snow
  • Manual zoom lens adjustable from 2.8 to 12mm
  • Easily mount and position the camera at virtually any angle
  • Wall Mount Design Only - comes with wall mount bracket as shown
  • Bracket with pass through cabling to protect cabling from vandalism
  • DC 12V power supply included


  • 1x Dome Camera
  • 1x Built-in Wall Mounting Bracket
  • 1x 12V 1000mA power supply for up to 100ft run

If needed, choose cabling from Product Options above.


Avalonix 700 TVL Resolution Sony Effio-E Technology

Higher horizontal resolution over 650 TVL. Confirmed maximum resolution to achieve true 700 TV Lines of Resolution.
Digital Noise reduction (DNR) is a function that reduces the image noise to improve the image quality of the camera. In particular, it reduces the noise which is generated under low light conditions and other high-gain states.
The Effio-E comes with a space-based Noise Reduction function.
Excellent color reproduction under variety of light sources [1,800K to 10,500K Lumes]
Preset OSD Menu: The "Effio-E" signal processor includes OSD (on-screen display) functions that allow camera settings to be made using the joystick or button controller located on the camera cable or inside the camera.
ATR/ATR-EX: The ATR (Adaptive Tone Reproduction) function provides gradation compensation to improve the contrast of subjects whose gradation has been lost in cases where, for instance, both low-luminance areas and high-luminance areas exist in the same picture.
The ATR function improves the visibility of the entire picture by providing optimum gradation compensation for the image in one field based on the luminance information.



Image Sensor 1/3" SONY Color CCD Day and Night with Sony Effio-E DSP
Horizontal Resolution 700 TV Lines Color
Pixels NTSC:768(H)×494(V)
Usable Illumination 0.001 with Infrared Off
0 Lux with Infrared On
TV System NTSC
IR LED 30 Infrared LEDs
IR Series Distance 80 ft or 25 meters
Lens 2.8 -12mm Manually Adjustable Zoom Lens (2 megapixel lens)
Sync System Internal
S/N Ratio ≥54dB (AGC OFF)
Gamma Correction 0.45
Video Out Composite Signal BNC Output (1.0Vp-p, 75Ω)
Electronic Shutter Time Auto: NTSC 1/60-1/100,000Sec
Operation  Temperature -10°C to + 50 °C, Relative Humidity 95% Max
Storage  Temperature -20°C to + 60 °C, Relative Humidity 95% Max
White Balance Auto
Dimensions 5.31 x 4.4 inches
Power Source DC12V 500mA
Weight 2 lbs
