8 Channel Hybrid DVR NVR


Be the first to review this product


Availability: In Stock

* Required Fields


8 Channel Hybrid DVR NVR

More Views

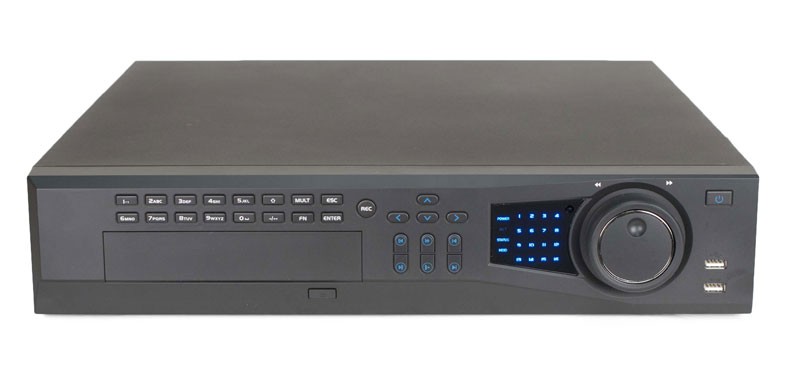

This 8 Channel Hybrid DVR/NVR Video Recorder is an amazing value. This hybrid dvr recorder can record video at resolutions up to 1080p at 120fps total. This hybrid NVR also has the ability to automaticly detect ip cameras on the same network as the DVR which makes setup very simple. It comes standard with HDMI and VGA video outputs so you can view your entire security system in resolutions you wouldn't think possible. All of theses features are made possible by the Dual Core CPU inside this video recorder.


This unit has HDMI and VGA video outputs, which means you can output high resolution video to multible monitors. Multiple monitors will display identical views. What you are doing on one monitor will show up on the other. If you are looking to add a secondary monitor that display a certain camera, you can use the Spot monitor out to do that.


This hybdrid DVR/NVR is capable of recording up to a total of 16 cameras. 8 cameras being IP and 8 cameras being analog. Analog cameras can record up to D1 resolution at 30fps (Real Time) for a total of 240fps at D1. For your ip cameras you can record either 8 cameras at 1080p at 15 frames per second each, or up to 30fps at 1080p for 4 ip cameras. The interal processor evenly distributes the 120fps of 1080p recording capability based on the number of IP cameras you are using.

You can use 3 megapixel, 2 megapixel, or 1.3 megapixel ip cameras we sell.

Match this capability against any other DVR on the market today and you will see why this is truly the Ultimate DVR! It is ideal for use in casinos, for license plate capture, long distance facial detection or anywhere that high resolution images are paramount.


The built-in Web server allows you to perform most every function of the DVR remotely with internet explorer and client software is also included to allow you to centrally monitor multiple units simultaneously. Two-way audio over the network or Internet is also standard; just bring your own microphones and speakers. So, not only can you hear what is going on, you can interact.

This DVR supports up to 20 simultaneous network or Internet users. You can give individualized rights and access controls to each user. You can block users from playing back video, or block them from viewing certain cameras.

With Dynamic DNS support, it is not necessary to have a static IP address on your network in order to remotely access this DVR. Our DVRs are compatible with no-ip.com and dyndns.com for third party DDNS support. This saves you money, as most ISPs charge extra for a static IP address.


Having the ability to remotely view your system is great, but what if you are on the road and just can't monitor your system all the time. This is no problem with the Hyrbid Series DVR's highly flexible email and smartphone viewing capability. For viewing your surveillance cameras simply download our iPhone/iPad or Android App.

For email alerts just set up a standard POP email account and have the system email you anywhere based on any criteria you choose. Many of our customers have emails sent to their cell phone for real time alerts. You choose email triggers that you want, and the DVR does the rest. You can even send push alerts to your phone that alert you of motion events.

The chart below describes recording on all channels at the same resolutions. There is also the option to mix and match resolutions to your liking.

 Recording Options    Resolution on Cameras 1-8     Frame Rate
1080 Option (1920x1080) 15fps (1/2 realtime)
720 Option (1280x720) 30fps (Full Realtime)
D1 Option (704 x 480) 30fps (Full Realtime)


  • Recording up to 1080p Resolution on 8 IP cameras
  • Records up to 16 cameras - a combination of 8 analog and 8 ip cameras
  • HDMI Output for 1080p High Definition video output
  • H.264 video compression
  • Dual encoding streams supported
  • BNC, VGA, and HDMI Simultaneous video output
  • Live, recording, playback, backup & remote access
  • 16 Channel video playback from recorded video
  • Supports motion video alerts, and video loss alerts
  • Supports PTZ cameras that are PelcoD or P compatible
  • Remote Monitoring on Smartphones and Computers
  • Holds 6 Hard Drives with a DVD Burner or 8 Hard Drives without a DVD Burner
  • Remote viewing over the Web using internet explorer, windows software, or smartphones



Recording Speed IP: 1080p@120fps / 720p at 240fps
Analog: D1/CIF @ 240fps
Resolution 1080P (1920x1080), 720P (1280x720), 960H (928x480), D1 (704x480), CIF (352x240)
Drive Capacity: 8 SATA
Video Inputs IP: Up to 8CH
Analog: 8CH Total
Ethernet Ports 1
Video Outputs VGA / BNC / HDMI
Audio Inputs 8
Audio Outputs 1
Internal DVD Burner Support Yes
Smart Phone Access/Push Notification Yes
Motion Activated Recording Yes
PTZ Control Yes
Simultaneous Remote Users 20


Additional Information

Warranty 3 Year
Return Policy 30 Days Return Policy
