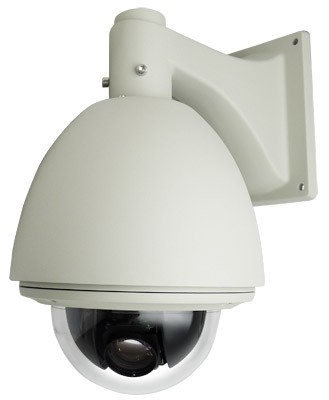

Auto Tracking PTZ Camera High Speed Dome

Item # PTZDN9800

Be the first to review this product


Availability: In Stock


High Speed Dome Camera 18x Zoom

More Views


216X Zoom Auto Tracking PTZ Camera

PTZ cameras have a wide range of functionality, and this camera is no exception. First it has Auto Tracking that fully zooms on to a person's face if it detects a person moving. I also has a great resolution of 540 TVL in color mode and 570 TV Lines in B/W, offering the best picture an analog PTZ camera can have. The camera is not only high resolution, it is also able to see in very low light. It has a 0.01 Lux 1/4" SONY CCD that can see in almost no light. Then if you dig slightly deeper you see that it offers amazing zoom, 18x optical zoom and 12x digital to be exact. It has a 3.5mm to 63mm optical zoom lens that allows the camera to see 18X. With this amount of zoom it will be easy to close in on a face or object 90ft away and recognize it. The other amazing factor about this camera is it can work through extreme heat thanks to the built-in blower, all the way down to -40 degrees Farenheit and all the way up to 140 degrees Farenheit. Another key ingredient to this camera is its 360 degree continuous pan range. So there is no need to worry about blind spots because this camera has always got you covered. Overall if you’re looking for a great Autotracking PTZ camera this is perfect for you.

This camera comes with its own power supply and a free wall mount bracket.

Besure to purchase proper cabling and a joystick controller if you don't already have one, or your DVR does not support RS485 inputs.


  • Outdoor Weather Proof Camera
  • 9 inch diameter Speed Dome Housing
  • All aluminum construction
  • Day and Night SONY 1/4" CCD that switches to black and white in low light
  • 540 TVL Color Resolution 0.1 Lux
  • 570 TVL Black and White Resolution 0.01 Lux
  • 3.5mm to 63mm Optical Zoom Lens
  • 18X Optical Zoom / 12X Digital Zoom  - Total 216X zoom
  • Built-in On screen display menu that let's you configure cruise modes, auto presets, and zones
  • 128 presets (can be labeled with editable title)
  • 4 pattern tours
  • Pans 360 degrees continuously
  • Tilts 90 degrees, automatically flips to the other side when reaching the bottom giving a continuous 180 degree tilt
  • 8 programmable zones
  • Lightning proof and surge proof protection TVS 1500W
  • IP66 weather proof housing for all weather use
  • Built-in blower allows use in temperature up to 140 degrees F
  • RS485 control through any PTZ controller
  • Support Pelco-D, Pelco-P, Samsung, and other PTZ protocols
  • 24V AC Power Supply Included


  • 1x High Speed PTZ Dome Camera
  • 1x 24V AC Power Supply Included
  • 1x Wall mount bracket
  • 1x 6 inch pigtail with BNC Video Jack, Power and RS485 Leads


Image Sensor Day & Night
Effective Pixels 768 (H) x 494 (V)
Resolution 540 Color / 570 TV Lines BW
Min. Illumination 1.0 (Day) / 0.01 (Night)
S/N Ratio More than 48dB
Focus & Iris Automatic / Manual
Lens 18x Optical Zoom, 12x Digital Zoom
Angle of View Wide 48 / Tele 2.8
Decoder Built-in
Motor Stepping Motor
Synchronization Internal / External
Preset 128 Presets, Can be Labeled with Editable Title
Pan Range 360° Continuously
Pan Speed 0.5 to 300 degrees per second
Tilt Range 0 to 150 degrees
Tilt Speed 0.5 to 90° / Second
Preset Find Time < 1.0 Second
Communication RS-485
Protocol Pelco-P, Pelco-D, Panasonic, Samsung, etc.
Operating Temp. -10°~ 60°C
Humidity 0-95%
Protection Grade IP66, TVS 1500w Lighting-proof & Surge-proof
Dimension 11.8 inches tall x 9 inches diameter
Net Weight 16 lbs approximately

Additional Information

Warranty 1 Year
Return Policy 30 Days Return Policy
