Details

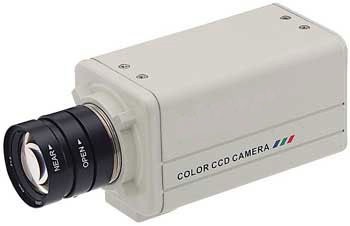

This security camera is a good "inexpensive" C/CS mount camera for general purpose use either indoors or out. With a 420TVL resolution and many possible lens configurations this cctv camera is a great bang for the buck.
The size of the camera is relatively small allowing for maximum lens size in some enclosures. Ultimately it is a cost effective and great general use cctv security camera of box type for a variety of surveillance applications.
Features:
- 420 TVL Resolution
- Accepts CS Mount Lenses
- 0.1 Lux Illumination
- 1/3" CCD Black and White
- 12VDC Power Supply required, not included
- Lens Sold Separately, please make your selection from our cctv lenses
Specifications:
| Optical Technology Base: |
1/3” CCD Monochrome |
| Picture Elements (H x V) (mm): | EIA/NTSC 510 x 492 CCIR |
| Pixels: | 290,000 |
| Horizontal Sync Frequencies (KHz): | EIA/NTSC 15.734 |
| Clock Frequencies (MHz): | EIA/NTSC 19.0699 |
| Sync System: | Line Lock |
| Electronic Shutter: | 1/10,000th /Sec Linear |
| Lens Mount: | C and CS |
| Audio O/P: | NO |
| White Balance: | NO |
| Auto Gain: | Switchable |
| Weight (G): | 230 |
| Power Consumption: | 170ma |
| Image Size (H x V) (mm): | 4.82 x 3.64 approximate |
| Resolution: | 420 lines |
| Minimum Illumination: | 0.1 Lux |
| Vertical Frequencies (Hz): | EIA/NTSC 60 |
| Scanning: | 2:1 Interlace |
| S/N Ratio: | 46db |
| Auto Iris Lens: | n/a |
| Video O/P: | 1v PP |
| Gamma: | 0.45 |
| Back Light Compensation: | Switchable |
| Dimensions (mm): | 103 x 52 x 56 |
| Power: | 12VDC Nominal |
| Storage Temperature: | -30°C to +60°C |
