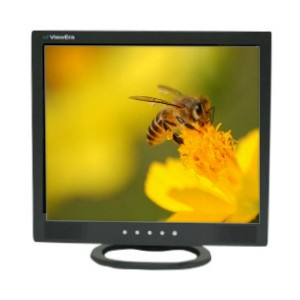

17 inch Flat Panel LCD Monitor with Coax Video Input

Item # MTFT17

Be the first to review this product

Availability: In Stock


17 inch LCD Monitor with BNC Video Input and Output

More Views


Popular! This is not your regular computer monitor. It has a coax video input to plug your analog BNC Type security camera, time lapse vcr, multiplexer, or video processor directly in to this unit. Of course you can also plug any computer to this monitor since it also accepts regular VGA video input. It is definitely an extremely well priced Flat Screen BNC monitor when you compare it to others on the market today! For starters, its Hi-Definition offers 1280 x1024 max resolution. Now if you can find another new 17" LCD Monitor in this price range, note its resolution --- odds are high it'll probably be less than 1280 x1024. It also has built-in speakers, an easy to use OSD (On Screen Display), and easy access front panel controls.


  • 1x 17inch Flat Screen Color Liquid Crystal Display TFT Monitor
  • 1x Power Supply
  • 1x VGA cable
  • 1x Audio Cable
  • 1x User Manual


  • 1280x1024 Resolution Maximum
  • Ultra Slim Bezel
  • Response Time 8ms
  • Contrast Ratio 300:1
  • Brightness 300cd/m2
  • Video Inputs:
    • BNC Video
    • VGA
  • Video Output: BNC Out
  • Audio Input
  • Built-in Speakers



Model V00172BNB
LCD Display 17” Active Matrix TFT LCD Panel
Max. Resolution 1280(H) x 1024(V) SXGA
Pixel Pitch 0.264 (mm)
Color Depth 16.2 million
Contrast Ratio 500 : 1 (Typ)
Brightness 300 cd/m²
Viewing Angle Horizontal : 140° , Vertical : 130°
Response Time 8 ms (Typ)
Image Processing 3D Comb Filter
Signal Input Analog D-sub;Composite BNC
Audio-in (speaker) 3 Watts x 2
Connector D-sub, DC in, BNC IN x1, BNC OUT x1, Composite Audio-in
Power Consumption 40 Watts (Max.); 3 Watts (standby)
Power Adapter AC Input: 100-240V~1.8A, 50-60HzDC
DC Output: 12V/4.16A
Front Control Menu, Down, Up, Auto adjustment, Power
OSD Function contrast, brightness, auto adjustment, H. position, H. phase, V. position, H. width, sharpness, color temperature, OSD position, language, recall, volume
Set Size 14.96" (W) x 14.8" (H) x 5.5" (D)
Set Size without stand 14.96" (W) x 13.5" (H) x 1.88" (D)
Weight Net: 8.1 lbs (3.7 Kg)
Wall Mount VESA 75 (mm)
Warranty 1 year
Accessory Power adapter, power cord, VGA cable, audio cable, user manual
