Details

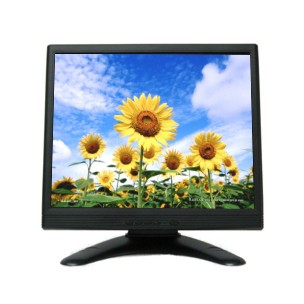

This CCTV Monitor is not your regular computer monitor. It has a coax video input to plug your analog BNC Type security camera, time lapse vcr, multiplexer, or video processor directly in to this unit. Of course you can also plug any computer to this monitor since it also accepts regular DVI video input. It is definitely an extremely well priced Flat Screen BNC monitor when you compare it to others on the market today! It also has built-in speakers, an easy to use OSD (On Screen Display), and easy access front panel controls. In addition, it can do looping with one BNC Video IN and one BNC Video OUT. The base stand and slim frame design makes the monitor look compact and simple. This security monitor also provides high display quality, reliability and space-saving.
Includes:
- 1x 19inch Flat Screen Color Liquid Crystal Display TFT Monitor
- 1x Power Supply
- 1x DVI to VGA cable
- 1x Audio Cable (3.5 mm Audio jack to RCA jack)
- 1x User Manual
Features:
- 1280x1024 Resolution Maximum
- Ultra Slim Bezel
- Response Time 5ms
- Contrast Ratio 800:1
- Video Inputs:
- BNC Video (2 inputs)
- DVI
- S-Video
- Video Output: BNC Out (2 outputs)
- Audio Input
- Built-in Speakers
Specifications:
| Model | V00191BNB |
| LCD Display | Anit-glare type, 19” Active Matrix TFT LCD Panel |
| Max. Resolution | 1280(H) x 1024(V) SXGA |
| Pixel Pitch | 0.294 (mm) |
| Color Depth | 16.7 million |
| Contrast Ratio | 800 : 1 (Typ) |
| Brightness | 250 cd/m² |
| Viewing Angle | Horizontal : 170° , Vertical : 160° |
| Response Time | 5 ms (Typ, on/off) |
| Image Processing | 3D De-interlace and 3D Comb Filter |
| Signal Input | DVI-I, S-Video, and Composite BNC |
| Audio-in (speaker) | 1 Watts x 2 |
| Connector | DVI, DC in, S-Video x1, BNC IN x2, BNC OUT x2, Audio-in x1 |
| Power Consumption | 50 Watts (Max.); 3 Watts (standby) |
| Power Adapter | AC Input: 100-240V~1.8A, 50-60HzDC DC Output: 12V/4.16A |
| Front Control | Auto/Source, Down (-), Up (+), Menu, Power |
| OSD Function | contrast, brightness, auto adjustment, H. position, H. phase, V. position, H. width, sharpness, color temperature, OSD position, language, recall, volume |
| Set Size | 16.54" (W) x 15.98" (H) x 7.48" (D) |
| Set Size without stand | 16.54" (W) x 14.06" (H) x 2.18" (D) |
| Weight | Net: 8.6 lbs (3.9 Kg) |
| Wall Mount | VESA 100 (mm) |
| Safety & EMI | UL, CUL, FCC-B, CB, CE, TUV/GS |
| Warranty | 1 year on LCD panel |
| Accessory | Power adapter, power cord, DVI-to-VGA cable, audio cable, user manual |
