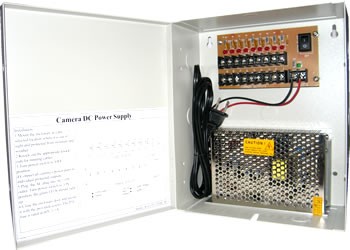

12V DC Power Distribution Box

Item # 12095

Be the first to review this product

$50.00

Availability: In Stock

* Required Fields

$50.00

12V DC Power Supply Box

More Views

Details

Power Distribution Box for 12V DC CCTV Cameras

At 123CCTV we pride ourselves in offering the best bang for the buck for every product we sell. This is no exception. These 12V DC power boxes come with a manufacturer 1 Year Warranty and we stand by it. Simply pay postage and we will replace it if this item were to go out. We offer 12V DC power boxes in 4, 9, and 18 port versions with various Amp ratings depending on their intended use.

We offer one 4 Port Power Box that is rated at 5 Amps total output, which you can use with any 12V DC camera on the market. You can purchase the 9 port box in a 12 Volt 5amp (5000mA) or 10amp (10,000mA) version which allows the user to power up to 9 devices or double that number and obtain our larger 18 port 10amp or 20amp models for larger applications. The 9 port 5 amp and 18port 10Amp both output 500mA (0.5amp) per port, this is sufficient to power any security camera without infrared and most cameras with infrared that consume less than 500mA. If you have cameras with a lot of infrared LEDs or you are running any type of infrared camera at a long distance, then we suggest you get the high powered boxes like the 9port 10amp or 18port 20amp since they each output a little over 1amp per port and this is plenty to power infrared cameras up to 300ft away with a 18 gauge wire.

For wire runs longer than 300ft we suggest you use a 24V AC power supply box or High Powered 24V AC Box and use the 24V AC to 12V DC Converters to power each 12V DC surveillance camera.

Each Power Distribution Box includes a 3 prong 110V power cable to connect the box to a AC wall socket. Below are the specifications of each of the 12V Power distribution panels. You can make your selection by choosing above before adding to cart.

12VDC 4 port 5 Amp Model (item 12045)

Specifications:

  • Input Voltage: 110V AC
  • Output Voltage: 12V DC Regulated
  • 12V DC Output 1.1 Amp per port
  • Total output current 5 Amp
  • 4 PTC Fuse protected outputs
  • Power On/Off Switch
  • Power LED Indicator for each port or channel
  • Surge Protected



12VDC 9 port 5 Amp Model (item 12095)

Specifications:

  • Input Voltage: 110V AC
  • Output Voltage: 12V DC Regulated
  • 12V DC Output 0.55 Amp per port
  • Total output current 5 Amp
  • 9 PTC Fuse protected outputs
  • Fuse Rating 1.1 Amp
  • Power On/Off Switch
  • Power LED Indicator for each port or channel
  • Surge Protected
  • Size: 9 3/4 x 8 x 3 3/4 inches (HxWxD)



12VDC 9 port 10 Amp Model (item 120910) - High Powered

Specifications:

  • Input Voltage: 110V AC
  • Output Voltage: 12V DC Regulated
  • 12V DC Output 1.11 Amp per port
  • Total output current 10 Amp
  • 9 PTC Fuse protected outputs
  • Fuse Rating 2.0 Amp
  • Power On/Off Switch
  • Power LED Indicator for each port or channel
  • Surge Protected
  • Size: 9 3/4 x 8 x 3 3/4 inches (HxWxD)



12VDC 18 port 10 Amp Model (item 121810)

Specifications:

  • Input Voltage: 110V AC
  • Output Voltage: 12V DC Regulated
  • 12V DC Output 0.55 Amp per port
  • Total output current 10 Amp
  • 18 PTC Fuse protected outputs
  • Fuse Rating 1.1 Amp
  • Power On/Off Switch
  • Power LED Indicator for each port or channel
  • Surge Protected
  • Size: 9 3/4 x 8 x 3 3/4 inches (HxWxD)



12VDC 18 port 20 Amp Model (item 121820) - High Powered

Specifications:

  • Input Voltage: 110V AC
  • Output Voltage: 12V DC Regulated
  • 12V DC Output 1.11 Amp per port
  • Total output current 20 Amp
  • 18 PTC Fuse protected outputs
  • Fuse Rating 2.3 Amp
  • Power On/Off Switch
  • Power LED Indicator for each port or channel
  • Surge Protected
  • Size: 10.2 x 10.5 x 3 inches (HxWxD)

Additional Information

Warranty 1 Year
Return Policy 30 Days Return Policy. Only unused items returnable. Shipping non-refundable.
