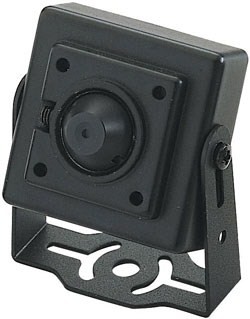

Color Mini Camera with Pinhole Lens

Item # MP31P

Be the first to review this product

$80.00

Availability: In Stock

$80.00

Color Pinhole Camera

More Views

Details

Great little inexpensive Color Mini Camera with Pinhole Lens for indoor use. You can easily hide this anywhere you want. This mini camera with 420 TV Lines thanks to its 1/3" SONY CCD and 3.7mm Pinhole Lens provides a 80 degree angle of view. You can expect to see a person's face very clearly up to 20 ft away from the camera.





Features:

  • Mini Color Camera with 1/3" SONY CCD
  • 3.7mm Pinhole Lens for a 80 degree angle of view
  • 420 Lines Resolution
  • 0.5 Lux Minimum Illumination requires a lit room with at least a 20W light bulb
  • Metal Case
  • Auto Gain Control
  • Auto White Balance
  • Female BNC Video Connector
  • 12V DC Jack
  • Mounting Bracket Included
  • 12V 500mA power supply included

Includes:

  • 1x Color Mini Camera
  • 1x 12V 500mA Power Supply

Specifications:


Image Sensor
1/3" Color SONY CCD Image Sensor

Picture Elements
(Horizontal x Vertical in mm)
512(H) x 492 (V), NTSC/EIA

Horizontal Frequency
NTSC/EIA 15.734KHz;

Vertical Frequency
NTSC/EIA 60Hz
  Clock Frequency
NTSC/EIA 19.0699MHz

Horizontal Resolution
420 Horizontal TV Lines

Minimum Illumination
0.5 Lux

Scanning System
2:1 Interlace

Signal to Noise Ratio
More than 46dB

Electronic Shutter Speed
1/100,000sec. Linear

Lens
3.7mm / f1.2 Pinhole Lens

Video Output
1V p-p 75 Ohms

Gamma
0.45

Power Supply
12V DC
  Power Consumption 100mA

Weight
54g approximate
  Dimensions 36mm(W) x 36mm(H) x 21mm(D) approximate

Storage Temperature
-30°C to +60°C

Operating Temperature
-10°C to +45°C

Additional Information

Warranty 1 Year
Return Policy 30 Days Return Policy
