Hidden Electric Socket Camera


Be the first to review this product

Availability: In Stock


Hidden Electric Socket Camera

More Views

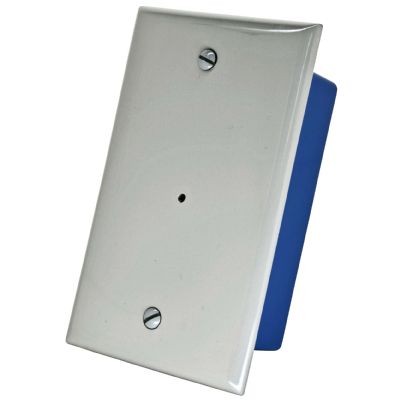

The covert electric socket cameras work great in office and other business environments such as warehouses. Thousands of us go to work everyday and pass electrical wall panels just like this and pay no attention to them. No one will suspect that this electrical socket panel actually houses a wide angle pinhole camera. The camera is a SONY CCD 480 TV Line Resolution hidden camera with a low 0.4 lux rating. That means you can see in very low light, all you need is a 20 watt light bulb in the area where the camera is set to monitor.  Also the camera has a 3.7mm wide angle lens to give a 78 degree angle of view.

This camera comes with a 12V power supply only. All you need is a video cable to connect this to your DVR that accepts a standard BNC video input.


  • 1/3” Sony Super HAD color CCD
  • Crystal Clear : 480 (Color) / 520 (B/W) TV lines
  • Day & Night : sensitivity increasing during night time
  • 0.4 Lux at F1.2 (Color) / 0.03 Lux at F1.2 (B&W)
  • DC 12V / 60Hz
  • 3.7mm fixed pin-hole board Lens Installed


  • 1x hidden camera
  • 1x 12V 500mA power supply


Image Pick-up Device 1/3 Sony Super HAD CCD
Picture elements 811(H) x 508(V) 410K pixels (NTSC)
795(H) x 596(V) 470K pixels (PAL)
Effective picture elements 768(H) x 494(V) 380K pixels (NTSC)
752(H) x 582(V) 440K pixels (PAL)
Scanning Area 3.65(H) x 2.74(V) mm
Scanning System 2:1 Interlace (NTSC Standard)
525 Lines / 60 Fields / 30 Frames
Sync System Internal
Resolution 480(D) / 520(N) TV Lines Horizontally
S/N Ratio More than 48dB (AGC OFF)
Video Output CVBS : 1.0Vp-p / 75Ω
Lens 3.7mm fixed pin-hole board Lens
Minimum Illumination 0.4 Lux at F1.2(Color)
0.03 Lux at F1.2 (B/W)
White Balance AWB
Shutter Speed 1/60 ~ 1/120,000 sec
BLC Built-in
Gain Control Built-in
Day & Night Yes
Operational Temperature -10°C ~ 50°C(14°F ~ 122°F) 30% to 80% RH
Storage Temperature -20°C ~ 60°C(14°F ~ 122°F) 20% to 80% RH
Power Input Voltage DC 12V ±10%
Power Consumption 300mA

Additional Information

Warranty 1 Year
Return Policy 30 Days Return Policy.
