High Resolution Smoke Detector Camera

Item # SD600

Be the first to review this product

Availability: In Stock

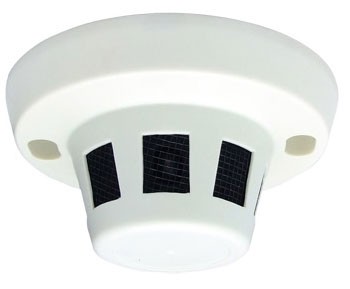

High Resolution Smoke Detector Camera

More Views


Looking for a camera that nobody can tell is a camera, then look no further. This is a hidden smoke detector camera that you can mount on any ceiling and wire back to a TV or DVR Recorder. By using our siamese cable, you can run both video and power over the same cable so you don't need to have power sockets near the camera. This smoke detector camera is great for offices with drop ceilings where you can easily run cable hidden above the ceiling.

This High Resolution Smoke Detector Camera provides a 80 degree angle of view thanks to its 1/3 inch Color CCD image sensor so you can mount it in the corner of a room and capture most of the room. Let's not forget about the resolution. This has a whoping 600 TV Lines - that's pretty high for hidden cameras. Combine that with a 0.5 lux sensitivity for low light function in illumination equal to a 20 watt light bulb or more.

Best of all, because it looks like a regular smoke detector, you're able to place as many of these hidden CCTV cameras as you need in the areas you want covered.


  • Hidden Smoke Detector Camera
  • Indoor Color Video Camera
  • 600 TVL Resolution
  • 1/3 inch Color CCD Sensor
  • 3.7mm Lens that gives a 80 degree angle of view
  • Non functional smoke detector
  • Auto Gain Control
  • Auto White Balance
  • BNC Video Connector
  • 12V Power Jack



  • 1x Color Smoke Detector Camera
  • 1x 12V DC Power Supply



Image Sensor 1/3" High Resolution Color CCD
Resolution 600 TVL
Number of Pixels 768 (H) x 494(V)
Lens 3.7mm
Minimum Illumination 0.5 Lux
Signal System NTSC
Audio None
Gain Control AUTO
White Balance AUTO
Back Light Compensation AUTO
S/N Ratio >48db
Electronic Shutter NTSC:1/60~1/100,000s
Video Output 1Vp-p 75 Ohms
Power Supply DC 12V
Gamma Characteristic 0.45
Sync System Internal sync
Operation temperature -10°C to +50°C
Storage Temperature -20°C to +60°C

Additional Information

Warranty 1 Year
Return Policy 30 Days Return Policy
