Infrared PTZ Camera - Johnny5

Item # Johnny5

Be the first to review this product


Availability: In Stock


Outdoor PTZ Camera - Johnny 5

More Views

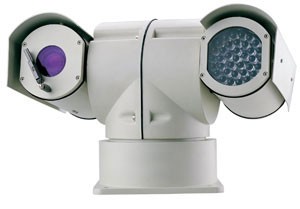

Johnny5 - 432X Zoom, 300ft Infrared Outdoor PTZ Camera, 560 TVL

We like to call this the new Johnny5. This outdoor Pan Tilt Zoom Infrared Camera has a large array of infrared LEDs on one side and a whopping 36X optical zoom / 12X Digital Zoom Camera on the other with a wiper. Its arsenal of infrared LEDs allow it to see up to 300 feet at night in pitch black, making it great for homes and farms out in the country where you want to keep an eye on your valuable property. It is rated at an IP66 weatherproof rating meaning it will withstand harsh rain, snow, or dirt, in either hot or cold temperatures. The resolution for the built-in SONY CCD camera is 560 TV Lines in Color and has the ability to switch to black and white in Day & Night mode and provide 600 TVL resolution video in black and white. The lux rating on the camera is 0.01 when the infrared is not on, and 0 Lux with the infrared on. Let's not forget the zoom capabilities. This camera has a 3.4mm to 122.4mm motorized zoom lens that you can control sitting at your monitoring station with the use of a PTZ joystick controller. We're talking about enough zoom to see 300ft away.

Because of popular demand we made the camera a horizontal surface mount unlike the ordinary PTZ cameras. It's meant to be mounted on a flat surface like a roof line, top of a vehicle, or with the optional wall mount bracket arm that is available.

You will need a coax RG59 cable for Video, and CAT5 cable to carry the RS485 data signal for the PTZ controls. A 24V AC Power supply is included.


  • 600 TVL Resolution Black and White
  • 560 TVL Resolution Color
  • Camera rotates endlessly up to 360 degree continuously in the horizontal plane
  • Camera can tilt 90 degrees up and below the horizontal
  • 0 Lux with infrared On
  • 300ft of night vision in total darkness
  • 36X optical zoom / 12X Digital Zoom
  • 3.4-122.4mm Motorized Zoom Lens
  • You can easily set parameters like auto scan, auto-cruise, and zones
  • Allows for 128 Presets , 6 Track Groups with 16 Presets each
  • Built in heater to keep the camera function at subzero temperatures
  • Lighting proof and Surge proof construction (TVS 1500W)
  • IP66 weatherproof housing for use in any type of weather
  • Supports RS-485 control via multiple protocols for control via PTZ Joystick
  • Supports Pelco-D and Pelco-P protocols
  • Temperature range of -31°F to 131°F
  • 1 Year Warranty


  • 1x Camera
  • 1x 24V AC Power Adaptor


Image Sensor 1/4" SONY CCD
Video System NTSC
Effective Pixels 768 (H) x 494 (V)
Resolution 560 TVL Color or 600TVL Black and White
Min. Illumination 0.01 Lux (Day)
0 Lux with IR ON
S/N Ratio More than 48dB
Focus & Iris Automatic / Manual
Lens 36x Optical Zoom, 12x Digital Zoom
Infrared Wavelength 850 nm
Viewing Angle 65° Wide
1.7° Tele
Iris Control Auto / Manual / Auto Slow Shutter
Synchronization Internal / External
Pan Range 360° Continuously
Tilt Range 180°
Communication RS-485
Protocol Pelco-P, Pelco-D, Panasonic, Samsung, etc.
Power 24V AC
Operating Temp. -31°F to 131°F
Humidity 10-90%
Protection Grade IP66, TVS 1500w Lighting-proof & Surge-proof
Dimension 18" x 18" approximate
Gross Weight 15lbs approximate

Additional Information

Warranty 1 Year
Return Policy 30 Days Return Policy. Special Order Item. Subject to 25% restocking fee.
