Details

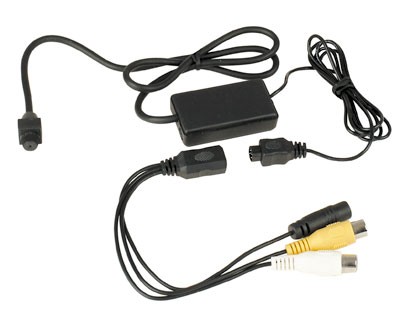

This inspection snake camera has a wire neck that is flexible enough to take any turn you need to snake it through. It is almost fiberoptic style.
Features:
- Digital Endoscope Camera / Snake Camera
- 1/4 inch Color SONY CCD
- 3.7mm Pinhole Lens
- High Resolution: 420 Lines
- Built-in microphone for audio capture
- Ultra Low 0.1 Lux
- DC 9-12V Power Supply Included
Includes:
- 1x Inspection Camera with audio, and 4" breakout cable
- 1x 12V 500mA power Supply
Specifications:
| Image Sensor: | 1/4" SONY CCD | |
| Picture Elements: | EIA/NTSC: 512 H x 492 V | |
| Horizontal Resolution: | 420 TV Lines | |
| Minimum Illumination: | 0.1 Lux | |
| Horizontal Sync. Frequency: | EIA//NTSC: 15.734 KHZ | |
| Vertical Frequency: | EIA//NTSC: 60 HZ | |
| Clock Frequency: | EIA//NTSC: 19.0699 MHZ | |
| Lens: | Pinhole Lens 3.7mm | |
| Video output: | 1Vp-p , 75 Ohms | |
| Gamma: | 0.45 | |
| Power Supply: | DC12V | |
| Power Consumption: | 120 mA | |
| Storage Temperature: | -30°C - 60°C | |
| Operation Temperature: | -10°C - 45°C |
