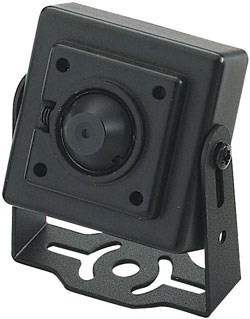

WDR Mini Board Camera 600 TVL

Item # GC36WD

Be the first to review this product


Availability: In Stock


WDR Mini Board Camera 600 TVL

More Views


If you are looking for mini camera that you can hide which will let you see crystal clear video in lit conditions and the ability to see in total darkness, then you've found what you were looking for.

This is the highest resolution mini camera that you will find anywhere that also has WDR and a slow shutter. Wide Dynamic Range (WDR) allows cameras to see even when there is light glare from the sun or reflections off of shiny surfaces. The slow shutter function of this camera allows it to see in almost no light at all. To be specific, it has a 0.001 lux rating. This camera offers 600TV Lines of resolution and comes with 3.7mm pinhole lens that provides a 80 degree angle of view. You can expect to see a person's face very clearly up to 25 ft away from the camera.


  • High Resolution 600TVL
  • Mini Camera
  • Wide Dynamic Range
  • Slow Shutter 0.001 Lux - Meaning you can see in almost no light
  • 3.7mm Pinhole Lens for a 80 degree angle of view
  • Very small metal case
  • Auto Gain Control
  • Auto White Balance
  • Female BNC Video Connector
  • 12V DC Jack
  • Mounting Bracket Included
  • 12V 500mA power supply included
  • On screen display menu controllable from the back of the camera


  • 1x Color Mini Camera
  • 1x 12V 500mA Power Supply


Image Sensor
1/3" Color SONY Dual Scan CCD Image Sensor
Picture Elements
(Horizontal x Vertical in mm)
811(H) x 508 (V), NTSC/EIA
Horizontal Frequency
NTSC/EIA 15.734KHz;
Vertical Frequency
  Clock Frequency
NTSC/EIA 19.0699MHz
Horizontal Resolution
600 TVL
Minimum Illumination
0.5 Lux Legacy Mode, 0.001 Lux Star Light Mode
Scanning System
2:1 Interlace
Signal to Noise Ratio
More than 46dB
Electronic Shutter Speed
1/100,000sec. Linear
3.7mm / f1.2 Pinhole Lens
Video Output
1V p-p 75 Ohms
Power Supply
12V DC
  Power Consumption 200mA
65g approximate
Storage Temperature
-30°C to +60°C
Operating Temperature
-20°C to +50°C

Additional Information

Warranty 1 Year
Return Policy 30 Days Return Policy
