Color Mini Camera with Microphone

Item # GC36A

Be the first to review this product


Availability: In Stock


Color Mini Camera with Microphone

More Views

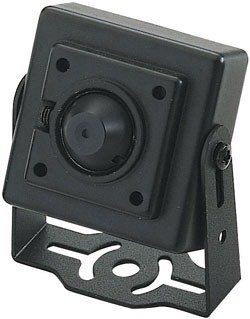

Cost-effective Color Mini Camera that has a built-in microphone and a pinhole lens, which make the camera a perfect choice to hide behind anything you'd ever want. This mini board camera has 420 TV Lines of resolution thanks to its 1/3" CCD and a 3.7mm Pinhole Lens that provides a 80 degree angle of view. You can expect to see a person's face very clearly up to 25 ft away from the camera. The built-in microphone can pick up conversations from up to 60ft away.


  • Mini Camera with Microphone
  • 3.7mm Pinhole Lens for a 80 degree angle of view
  • 420 Lines Resolution
  • 0.5 Lux Minimum Illumination requires a lit room with at least a 20W light bulb
  • Very small metal case
  • Auto Gain Control
  • Auto White Balance
  • Female BNC Video Connector
  • 12V DC Jack
  • RCA Female Connector for Audio
  • Mounting Bracket Included
  • 12V 500mA power supply included


  • 1x Color Mini Camera with Microphone
  • 1x 12V 500mA Power Supply


Image Sensor
1/3" Color SONY CCD Image Sensor
Picture Elements
(Horizontal x Vertical in mm)
512(H) x 492 (V), NTSC/EIA
Horizontal Frequency
NTSC/EIA 15.734KHz;
Vertical Frequency
  Clock Frequency
NTSC/EIA 19.0699MHz
Horizontal Resolution
420 Horizontal TV Lines
Minimum Illumination
0.5 Lux
Scanning System
2:1 Interlace
Signal to Noise Ratio
More than 46dB
Electronic Shutter Speed
1/100,000sec. Linear
3.7mm / f1.2 Pinhole Lens
Video Output
1V p-p 75 Ohms
Power Supply
12V DC
  Power Consumption 150mA
54g approximate
  Dimensions 36mm(W) x 36mm(H) x 21mm(D) approximate
Storage Temperature
-30°C to +60°C
Operating Temperature
-10°C to +45°C

Additional Information

Warranty 1 Year
Return Policy 30 Days Return Policy
