4 Channel Mobile DVR with 1 Audio Input Time Lapse 30fps - Clearance

Item # MDVR4001

Be the first to review this product

Regular Price: $499.99

Now only: $175.00

Availability: In Stock

* Required Fields

Regular Price: $499.99

Now only: $175.00

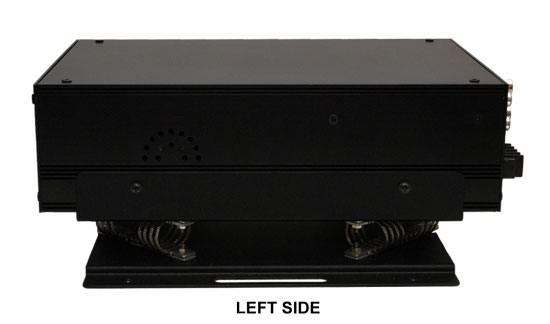

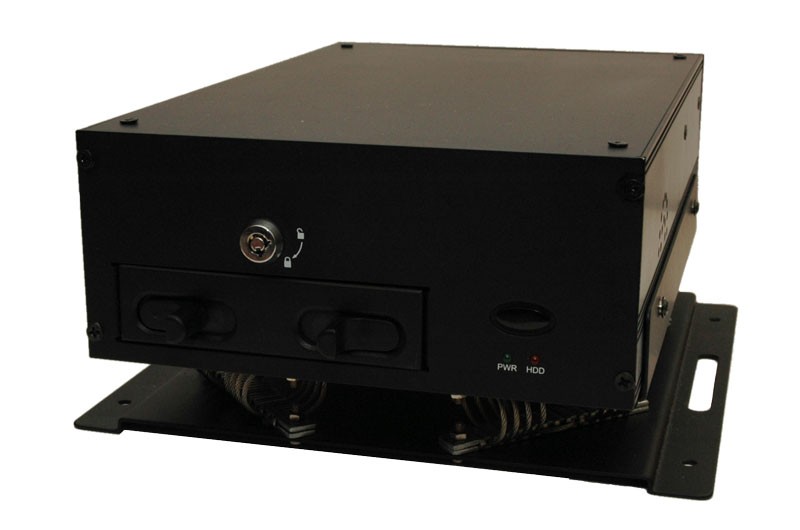

4 Channel Mobile DVR Front View

More Views



Clearance item marked down to sell! No returns accepted.


  • Records and compresses video & audio signal in real time
  • Shock proof sturdy design
  • High quality color video recording at 30 fps (frames per second)
  • Playback in Quad mode
  • Multiple recording modes:
    • Continuous
    • Motion Detection
    • Sensor Activated
    • Time Schedule
  • Built-in removable 2.5 inch Hard Disk Rack
  • USB 2.0 port for playback on your laptop or PC
  • Remote control included for easy operation
  • Supports IDE ATA-6 Mobile 2.5" IDE Hard Drives (not included)
  • This item is missing its manual


Video Input NTSC/PAL: BNC 4CH In/ 2CH Out (RCA)
Display Speed Quad mode NTSC: 120fps (4 x 30 fps) ; PAL: 100fps (4 x 25 fps)
Display Resolution NTSC: 704x480 ; PAL: 704x480
Recording Speed Quad mode: NTSC: Max. 30fps ; PAL: Max. 25fps
Each Channel: NTSC: Max. 7.5fps; PAL: Max. 6.25fps
Recording Resolution NTSC: 320x112 or 640x224; PAL: 320x136 or 640x272
Compression Method Modified MJPEG (12 – 20KBytes per frame)
Video Quality: Low 12KBytes ; Normal15KBytes ; High 20Kbytes
Hard Disk Not included; supports up to 200GB ATA-6 2.5 inch HDD
Recording Time 14 days with 120 GB HDD @ 7 fps per channel
Recording Mode Continuous, motion detection, sensor activated, time schedule
Alarm Sensors 4 inputs, 1 output (12 pin DIP Switch, 2 Pin for PTZ)
USB 2.0 Port for Playback Yes
RS-485 Interface Yes
IR Remote Control Included
Audio 1 Channel In / 1 Channel Out
VGA Output Optional
Power Supply Powered via car battery (9 to 33V DC)
Storage Temperature & Humidity –20 to 65 °C / 20–95% RH (NO CONDENSER)
Operation Temperature & Humidity –5 to 50 °C / 20–80% RH (NO CONDENSER)
Dimensions 11.2 x 9.3 x 3.6 inches


What is included in the package?

  • 1 Mobile DVR
  • 1 Power Connector
  • 1 Remote Control
  • 2 Screw sets for mounting DVR and HDD
  • 1 USB 2.0 Cable to connect to PC

Additional Information

Warranty No
Return Policy Clearance Item tested to be in working condition. Missing manual. All Sales Final. No returns accepted.
