High Resolution Outdoor Dome Camera 600TVL

Item # 2460AVA

Be the first to review this product


Availability: In Stock

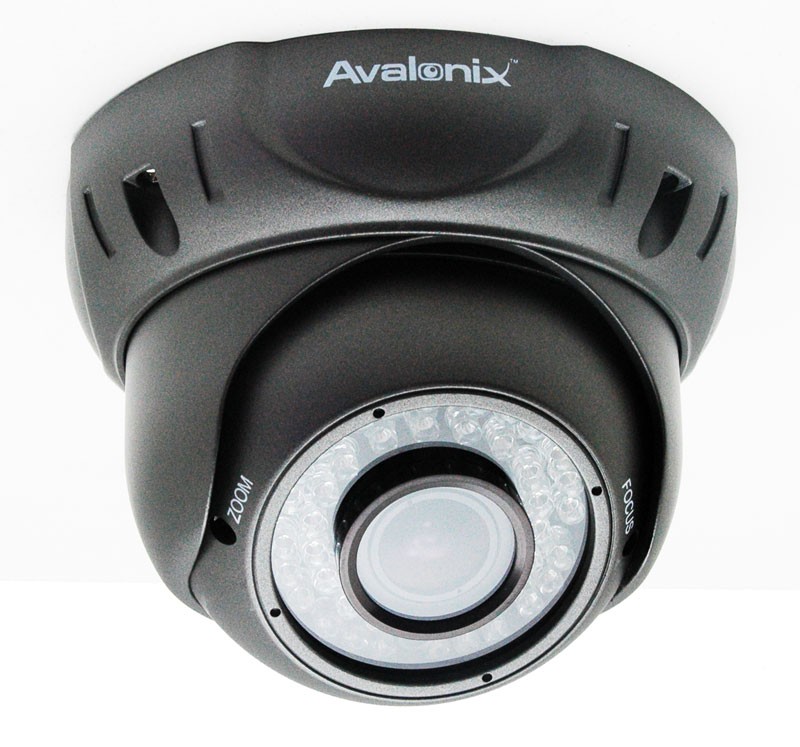

Dome Camera Ceiling or Wall Mount

More Views


The 2460AVA is the latest in 600 TVL Security Cameras by 123 CCTV. Don't be fooled by our competitors selling non weather proof cameras as IP65 or IP66. This camera is built solid and will last in outdoor weather even with occasional rain splashing. The 2460AVA has 42 high intensity infrared LEDs for night vision up to 100ft. You can manually adjust the lens at time of installation from 2.8mm for a wide angle view of 90 degrees to see things up close or set it all the way to 12 mm for a 4x zoom to see faces up to 50ft away. This is not your ordinary dome camera because of the image sensor that it has. This high resolution dome camera is Vandal Proof so it can withstand a hit from a rock or bat on its metal surface. It has a 3 axis bracket that lets you position the camera virtually any way you want. You can mount this camera on a ceiling or wall without the need for any additional mounting brackets.


  • Vandal Proof Dome Camera
  • High Resolution 600TVL Color Image Sensor
  • Day and Night Camera
  • 42 Infrared LEDs - Up to 100ft of Night Vision
  • 0 Lux Rating with Infrared On
  • IP66 Weatherproof Camera rating to withstand heavy rain, snow, and cold or hot temperatures
  • Manual zoom lens adjustable 2.8 to 12 mm Zoom Lens
  • Easily mount and position the camera at virtually any angle
  • BNC Video Output
  • No complicated OSD cable - camera is already pre-configured for best video settings



  • 1x Dome Camera
  • 1x Mounting bracket
  • 1x 12V 500mA power supply


If needed, choose cabling from Product Options above.


Image Sensor Color Day & Night Sensor
Horizontal Resolution 600 TV Lines Color
Pixels NTSC:768(H)×494(V)
Usable Illumination 0 Lux with Infrared On
TV System NTSC
IR LED 42 Infrared LEDs
IR Series Distance 100 ft or 30 meters
Lens 2.8-12mm Manually Adjustable Zoom Lens
Sync System Internal
S/N Ratio ≥54dB (AGC OFF)
Gamma Correction 0.45
Video Out Composite Signal BNC Output (1.0Vp-p, 75Ω)
Electronic Shutter Time Auto: NTSC 1/60-1/100,000Sec
Operation  Temperature -20°C to + 50 °C, Relative Humidity 95% Max
Storage  Temperature -20°C to + 60 °C, Relative Humidity 95% Max
White Balance Auto
Power Source DC12V 400mA
Weight 1.8 lbs
