DiGiCam 16 Channel PC DVR Card, Full D1 480fps


Be the first to review this product

Availability: In Stock

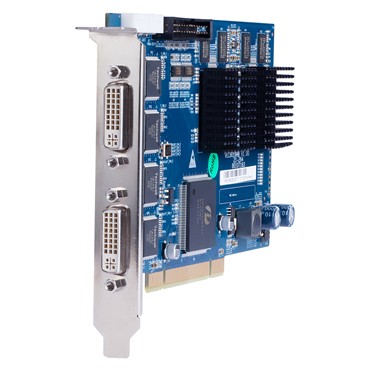

16 Channel Digicam PC DVR Card

More Views


This is the new version of our famous Digicam PC DVR Card. This 16 Channel DVR Card supports Full D1 video recording on all 16 Cameras and 16 Channels of audio as well. This is one PCI Card that fits in to your windows PC motherboard, and supports Windows 7 64 bit as well, in addition to Windows XP, and Windows 7 32bit. If you are looking for a quality professional PC DVR Card solution look no further. Its remote viewing software for Windows PC, and compatibility with 3rd party mobile apps makes it an ideal choice for users building their own PC DVR System.

Please be sure to save the serial key you get with your board as this units comes with licensed software.

This DVR Card is also compatible with the following 3rd party remote view apps:

For the iPhone:

  • mobileclient
  • pcdvrviewer

For the Android:

  • netdvrviewer


  • One PCI card that supports up to 16 cameras
  • You can add up to 8 cards to one PC to get a total of 128 channels
  • Hardware Video Compression - utilizes little CPU resources from your PC
  • Preview resolution D1, CIF, QCIF
  • Encoding resolution: D1, Half D1, 2CIF, CIF, QCIF
  • Compressing video/audio in real-time, no frame loss
  • FULL D1 Video Compression - Total 480fps or max 30fps per channel
  • Allows user to adjust image quality, bitrate, and fps
  • Allows user to adjust hue, contrast, saturation, brightness
  • Supports video based motion detection, video loss detection, and motion camera masking
  • Supports 64 channel decoding for single client-end
  • Windows 7 64 Bit compatible

Minimum PC requirements:

  • PCI 32-bit slot on motherboard
  • Intel CPU - P4 3GHz or higher
  • AMD CPU compatible also
  • Not compatible with via chipsets, or Intel i3, i5, i7 processors and associated chipsets
  • Operating system requirements: Windows XP/2000 32-bit, Windows Vista 32-bit, or Windows 7 32-bit
  • 1GB RAM
  • 250GB Hard Drive Space for Operating System
  • Second Hard Drive for Video Storage Recommended
  • Nvidia or ATI Radeon Graphics Card with 256MB of Memory or more




16 Channel BNC (1.0Vp-p 75Ω)


NTSC (525 Lines , 60 fps)

Preview Resolution

D1 (4CIF)/ CIF / QCIF, All Realtime



Encoding Resolution

4CIF/D1 (704×480)
Half-D1 (352×480)
2CIF (704×240)
CIF (352×240)
QCIF (176×120)

Encoding Speed

Main Stream: D1 (4CIF)/Half-D1/2CIF/CIF/QCIF all up to 30fps per channel

Extra Stream: CIF/QCIF up to 30 fps per channel

Bit Rate

32Kbps to 4Mbps

RAW Stream

Supported, Full-channels at 4CIF(D1)/CIF/QCIF



16 channel input via BNC (2.0Vp-p 1000Ω)


PCM (G.711)

Sampling Rate


Bit Rate


System Requirement

Operating System

Windows 2000/XP/2003/Vista/7, Linux


Intel or AMD


Based on Intel or AMD chipset, PCI slot


1GB or above


AMD, NVIDIA, Intel graphics cards, memory 256MB or above


Power Consumption



6.9 (L) x 4.2 (W) inches

Additional Information

Warranty 1 Year
Return Policy 30 Days Return Policy
