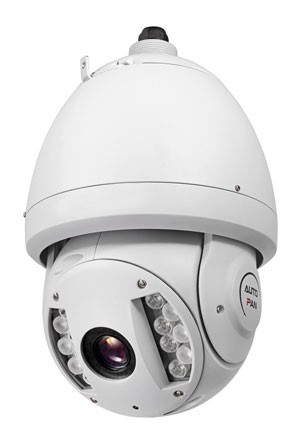

Long Range Infrared PTZ Camera

This professional pan tilt zoom camera with 270ft of infrared is perfect for use in any location where you are looking for a solid weather-proof PTZ camera to see in complete darkness and not one of those cheap imitations you find on eBay or Amazon that die out in less than a year because of low quality components. This PTZ23IR provides clear crisp 700 TVL resolution video from the SONY module inside, 23X Optical Zoom and 16X Digital Zoom, and Night Vision up to 270ft. You can expect to see a face up to 100ft away with this camera, day or night. Best of all, it is compatible with any of our DVRs and can be controlled remotely over the internet on your iPhone, iPad, or PC Computer.

Thanks to its advanced pan/tilt mechanism, it provides fast, precise movement with continuous 360-degree pan and tilt and 180 degree Auto Flip when you reach the end of the vertical axis. You can easily control the lens position with a mouse or a joystick to look at the object you are monitoring. The day and night function makes this camera ideal for operating under diverse lighting conditions. When light conditions turn poor, the IR cut filter will be switched to accept IR illumination from its on-board infrared LEDs. The camera also switches itself automatically from color to black and white, assuring optimal image quality at all times.

This high quality PTZ that has a special protocol made specifically for our DVRP, DVRPF, and DVRULT series DVRs. This will allow you to use our unique 3D positioning feature where you can simply draw a box around any part of the view of the camera with your mouse and the PTZ will automatically zoom in and re-position itself to center the object. It also integrates easily with our DVRs to easily program tours and presets, even sitting from your computer.

Features:

• Outdoor Weather-Proof Speed Dome
• 270 Feet Night Vision
• 23x Optical Zoom
• 16x Digital Zoom
• Color Sony Super HAD CCD Imaging Chip
• 700TVL Color Resolution / 750TVL Monochrome Resolution
• Real Day/Night (IR Cut Filter)
• Lux in Color Mode, 0.001 in BW Mode, 0 Lux with Infrared On
• Several Image Quality Controls: BLC, HLC, DWDR (Digital WDR)
• Temperature Controlled Built-in Heater & Blower
• -20 degrees F to 140 degrees F usage range
• 24V AC Power Supply Included

CCTV 700 TVL Resolution

Power Supply
This camera operates on 24 Volts AC and draws a maximum of 35W with the Infrared on and 13W with the infrared off. A single camera wall-plug in power supply is included with the camera. Be sure to protect this power supply from the elements.

We do not recommend use of a Power Distribution Box with this camera because of its power consumption.

Camera Control
This camera can be controlled directly with a PTZ Joystick Controller or with our Security DVRs. When connected to our Security DVRs you can remotely control PTZ cameras through the internet by using your smart phone, iPad, or PC computer. Our DVRs support iPhone, iPad, and Android phones and tablets.

Automatic Tours
This Long Range Infrared PTZ camera can be set to run automatic tours, panning, tilting and zooming to preset viewing locations for a preset duration; then moving to the next preset view. This can be easily achieved when used with our DVR Recorders.

Preset Alarm Positions
The camera has the ability to pan, tilt and zoom to a preset location if a specific alarm is received, such as a motion detector, door alarm or other sensor conditions. This is accomplished by connecting the sensors to the alarm inputs on our select DVR and commanding the camera from the DVR when the alarm trigger is received.

Our Quality Guaranty
We rigorously test products before deciding to carry them as an offering to our customers. We only offer products that have passed this testing and deemed to have a proven track record. We also test each item at our facility prior to shipping to make sure it is operational and meets its advertised performance. Our goal is simple; quality you can count on and 100% customer satisfaction.

1 Year Warranty
All equipment is covered under a complete 1 year warranty from the date of delivery. During this time all products are guaranteed against manufacturing defects. In the event of such defects during this period, it is our responsibility to repair or replace the defective item with the same or comparable product. Items that have been damaged due to use or alteration by the user are not covered under warranty.

PTZ Motor Specifications

• Power Supply: 24V AC
• Pan Manual Speed: 0.1°~160°/s
• Pan Tilt Speed: 0.1°~120°/s
• Preset Positions: 255 (Pelco-P/D)
• Preset Position Speed: 240°/s
• Preset Accuracy: ±0.1°
• Pan Rotation: 360° Endless
• Tilt Rotation: 90° (Auto Flip)
• Auto Scan: 8 Auto Scans, Configurable Limit Stops & Speed
• Auto Tour: 8 Tours, Each Configurable Up to 32 Preset Positions
• Auto Pattern Scan: 5 Patterns Paths, Each Memorizing Up to 400 Commands with less than 1 Minute Intervals
• OSD Menu: Supported
• Autosensing Protocol: Supported
• Communication Port: RS-485
• Communication Protocols: Pelco-P, Pelco-D
• Baud Rate: 2400/4800/9600/19200bps
• Operating Temperature Outdoor: (-40°C~+60°C)
• Operating Humidity: 0~95%

Camera Specifications

• Image Sensor: 700 TV Line Sony CCD Chip
• Scanning System: Interlacing
• Effective Pixels: NTSC: 768(H) x 494(V)
• Horizontal Resolution: 700 TVL
• Optical Zoom: 23X 3.9mm~89.7mm
• Angle of View: H: 61.68° ~ 3.06°
• Max Aperture: F1.6~ F3.7
• Digital Zoom: 16X
• Minimum Illumination: 0.00 Lux
• S/N Ratio: More Than 50dB
• Digital Noise Reduction: 2D / 3D
• Electronic Shutter NTSC: 1/4~1/10,000 Sec
• White Balance: Auto/ATW/Manual/Indoor/Outdoor
• Backlight Compensation: BLC / HLC / DWDR (Digital WDR)
• Gain Control: Auto/Manual
• Privacy Area Masking: Auto/Manual, Up to 24 User-Defined Areas
