Details

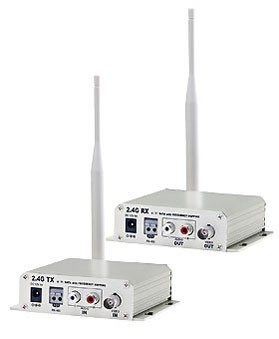

Interference free 2.4GHz transmitter and receiver kit. This kit will work with any Pelco-D compatible PTZ camera, as well as any PTZ motor that works off of RS485. This set up is designed for all wireless video, audio, and PTZ control. These are capable of working up to 300 feet away but can be made to work over even longer distances with our panel antennas.
Includes:
- 1x Transmitter
- 1x Receiver
- 2x 3dBi antennas
- 2x Power Supply
|
RF
|
||
|---|---|---|
Frequency |
2400-2480 MHz, 25-CH Auto Hopping (FCC & CE RTTE) |
|
RF TX Power |
100mW (Average) |
No |
Modulation |
16-QAM,Q |
PSK,BPSK |
Min. RX Sensitivity |
No |
-80 dBM |
Video |
||
Video Compression |
MPEG-4 |
|
Max. Frame Rate vs. Resolution |
NTSC: 30fps at 720 x 480 (D1) PAL: 25 fps at 720 x 576 (D1) |
|
Bit Rate |
Up to 6Mbps |
|
Audio |
||
Sampling Rate |
48KHz, Stereo |
|
S/N Ratio |
63dB |
|
Data |
||
RS485 |
2-wire RS485 Half Duplex Baud Rate: 2400/4800/9600 bps Fixed Formats: 1 Start bit, 1 Stop bit, 8 Data Bits, No Parity 120ΩTermination Resistor ON/OFF Setting |
|
LED Indicators |
||
Red LED |
Power On and RF Link Status |
|
Green LED |
RS-485 Data Link Status |
|
Mechanical & Environmental |
||
Power Consumption |
230mA @ 12VDC |
|
Operation Temperature |
-10°C~50°C |
|
Storage Temperature |
-30°C~85°C |
|
Additional Information
| Warranty | 1 Year |
|---|---|
| Return Policy | 30 Days Return Policy |
