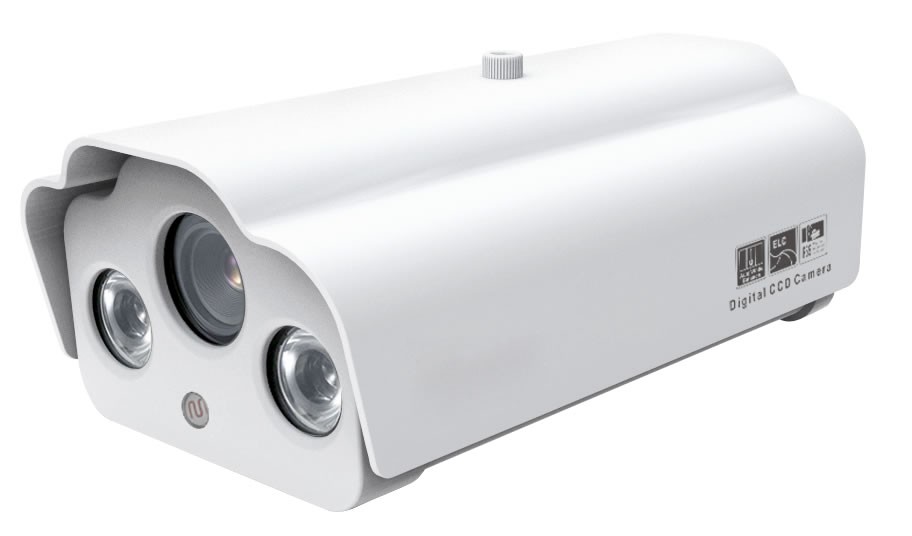

License Plate Camera 700TVL

Item # LP601

Be the first to review this product

$265.00

Availability: In Stock

$265.00

License Plate Camera

More Views

Details

The LP601 is a nice little license plate slow capture camera that will allow you to tag captures of vehicles moving up to 5 MPH at a distance of up to 25ft away from the camera. This camera is not for general video surveillance and is only used to capture license plates. For all license plate cameras we suggest zooming in as much as possible to the zone where the license plate is expected to cross; if you don't follow this then the license plate will be too small in the video view to see the numbers clearly. During the day this camera will see in color while at night, the white light illumination from onboard lights will provide adequate quality video from up to 25ft away from the vehicle. We recommend that there be no more than a 10 degree angle in both the horizontal or vertical plane to get a clean capture. Otherwise there is a chance of the image being blurry.



Features:

  • Great camera for capturing vehicles moving up to 5 MPH
  • Capture plates from up to 25ft away from camera
  • On Screen Display Menu (Controls at rear of camera)
  • 9 to 22 mm manual zoom lens easily by hand
  • 8X Digital Zoom
  • 1/3" Sony CCD High Resolution Color Camera
  • 700 TVL Lines of resolution

Included:

  • 1x License Plate Camera
  • 1x 12VDC 1 Amp Power Supply
  • 1x Camera Bracket



Specifications:

Image Pick-up Device 1/3" Sony Super HAD CCD
Picture Elements NTSC: 811(H) x 508 (V)
Illumination 0.003 Lux - Color
Dynamic Range 52dB (128)
Horizontal Resolution Color 700TVL
Vertical Frequency 2:1 Interlace Input Voltage: DC12V
Mini Illumination Color: 0.003Lux, B/W 0.00001 Lux
Sync. System Internal Temperature
S/N Ratio > 52dB (128)
Electronic Shutter NTSC:1/60 ~ 1/120.000 sec
White Balance ATW, AWC / Manual/ Outdoor
BLC WDR/BLC/Off (Selectable)
Lens 9~22mm Auto Iris Lens
Gamma 0.45
Video Output 1.0Vp-p (75OBNC)
Gain Control Low/Middle/High/Off selectable
Video Output Auto
Storage Temperature -30°F ~ +60°F
Operating Environment 0°F ~ 122°F
Weight 3.5lbs

Additional Information

Warranty 1 Year
Return Policy 30 Days Return Policy
