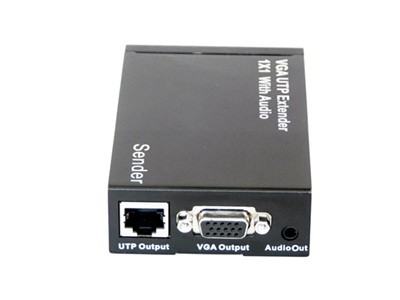

VGA Extender

Item # CT300S

Be the first to review this product

Availability: In Stock


VGA Extender

More Views


This VGA Extender with Audio is an ideal device for extending your VGA signals from your computer or DVR for remote viewing at a monitor in a different room. It is a great alternative to expensive VGA cables, since you can use CAT5 or CAT6 wiring which is cheaper in cost. It distributes the input of the VGA signal and audio signal into the output receiver by One Cat5 cable.


  • Extend VGA video and stereo audio up to 900ft maximum using shielded full copper CAT6 cable
  • Allows adjustment of GAIN and PEAK to adapt for the different lengths of CAT5/6 wiring
  • GAIN allow for Brightness adjustment
  • PEAK allows Skew adjustment
  • Supports a max resolution of 1920x1200
  • Dual video output at sender unit:
    • 1 x VGA output for local site
    • 1 x UTP/CAT5/6 output for remote site
  • Work with monitors, projectors, HDTV, and flat panels


Input connector

VGA(Female 15pin), Stereo Audio

Output connector

VGA(Female 15pin), Stereo Audio,1xRJ45

Operating Frequency


Vertical Frequency Range


Resolutions(PC): 640X480, 800X600, 1024X768, 1280X720, 1280X768, 1280X960, 1280X1024, 1600X900, 1600X1200, 1920X1080, 1920X1200

Size of Receiver (L-W-H)


Weight of Receiver (Net)


Operating Humidity

10% to 85 % RH (no condensation)

Storage Humidity

5% to 90 % RH (no condensation)

Power Supply for VGA UTP Extender 1X1 Splitter

5V@2A, max 5W

Power Supply for Receiver

5V@2A, max 5W

Converter Unit


Power Supply


Additional Information

Warranty N/A
Return Policy N/A
