Details

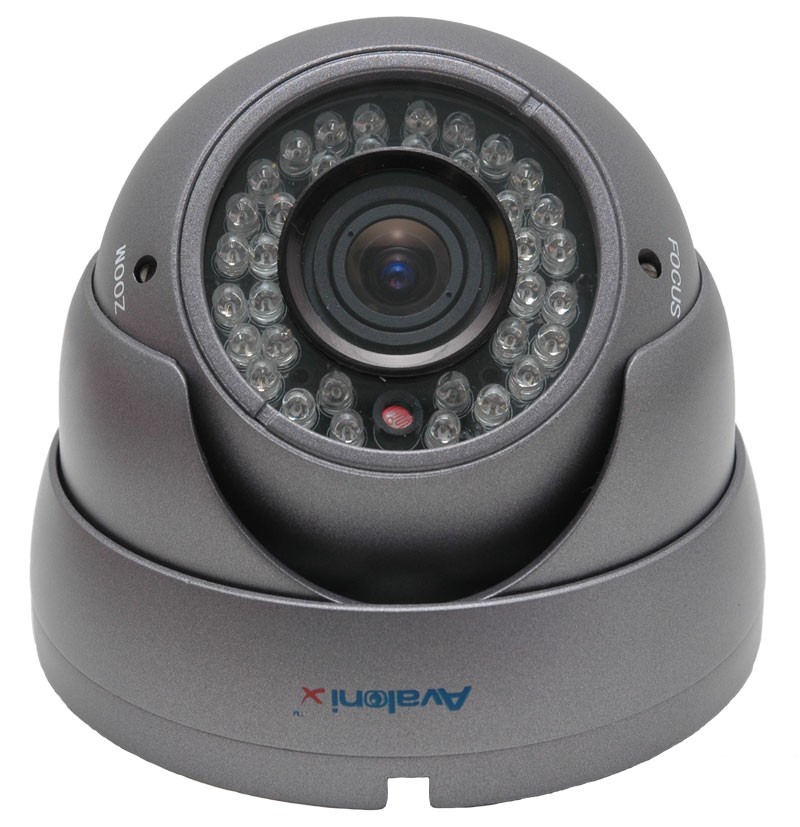

This vandalproof color dome camera has a SONY Image Sensor that provides 480 TV Lines of Resolution in Color. Don't be fooled by our competitors using the Black and White Resolution to upsell their products. It has 36 high intensity infrared LEDs for night vision for up to 100ft. You can manually adjust the lens at the camera from 2.8mm for a 90 degree wide angle view to see things up close or set it all the way to 12mm for a 4x zoom to see objects that are 30ft away and farther. You can expect facial clarity up to 40ft from the camera when set at the 12mm mark. The camera is Vandal Proof so it can withstand a hit from a rock or bat on its metal part. It has a 3 axis bracket that lets you position the camera virtually any way you want, and also has a the pigtail running through it to prevent cable cutting.
If you need video/power cabling please make a selection above.
Features:
- Vandal Proof Indoor Dome Camera
- 1/3inch SONY CCD Image Sensor
- Day and Night Camera
- 36 Infrared LEDs - 100ft Maximum Night Vision
- 1/3" Sony CCD Image Sensor provides crisp 480 TV Lines of Resolution
- 0 Lux Rating with Infrared On
- Manual zoom lens adjustable 2.8 to 12mm Zoom Lens
- Easily mount and position the camera at virtually any angle
- Bracket with pass through cabling to protect cabling from vandalism
- BNC Video Output for Video
- DC 12V power supply included
Includes:
- 1x Dome Camera
- 1x 12V 500mA power supply
If needed, choose cabling from Product Options above.
| Higher horizontal resolution over 400 TVL. Confirmed maximum resolution to achieve true 480 TV Lines of Resolution. |
 |
Specifications:
| Image Sensor | 1/3" SONY CCD |
| Horizontal Resolution | 480 TV Lines Color |
| Usable Illumination | 0.1 with Infrared Off 0 Lux with Infrared On |
| TV System | NTSC |
| IR LED | 36 Infrared LEDs |
| IR Series Distance | 100 ft or 30 meters |
| Lens | 2.8 -12mm Manually Adjustable Zoom Lens |
| Sync System | Internal |
| S/N Ratio | ≥54dB (AGC OFF) |
| Gamma Correction | 0.45 |
| Video Out | Composite Signal BNC Output (1.0Vp-p, 75Ω) |
| Electronic Shutter Time | Auto: NTSC 1/60-1/100,000Sec |
| Operation Temperature | -20°C to + 50 °C, Relative Humidity 95% Max |
| Storage Temperature | -40°C to + 60 °C, Relative Humidity 95% Max |
| White Balance | Auto |
| Power Source | DC12V 500mA |
| Weight | 2 lbs |
| Diameter | 4.75 inches approximate (base of camera) |
Additional Information
| Warranty | 1 Year |
|---|---|
| Return Policy | 30 Days Return Policy |
