WDR CCTV Camera, 700TVL Vandal Proof Dome

Item # 2770AVA

Be the first to review this product

Regular Price: $155.00

Now only: $120.00

Availability: In Stock

Regular Price: $155.00

Now only: $120.00

WDR CCTV Camera, 700TVL Vandal Proof Dome

More Views



Vandal Proof Dome Camera with Super WDR function that is able to see even when there is glare present. This is the perfection solution if you currently have a camera that keeps getting too much glare from sunlight or some other light source. This camera is ideal for use indoors, for example in a grocery or jewelry store, or behind a glass door to see not only indoors but also outside without getting a washed out image of the outside area, and many more possible scenarios. Provides facial detail up to 40 ft away depending on how the variable zoom lens is set at time of installation. This camera features a manual varifocal lens that can be adjusted by toggling levers on the lens inside the camera.


  • Indoor Color Dome Camera
  • Vandal Proof Dome design that prevents tampering with the camera
  • 1/3 inch Sony CCD Image Sensor
  • 700 TVL Resolution - High Resolution
  • 0.001 Lux in Color and 0.0005 Lux in Black and White mode - Starlight Camera
  • Day and Night Camera that switches to black and white mode when it is very dark
  • Super Wide Dynamic Range (WDR) function to see even when there is glare in the point of view
  • 2.8-12mm manually adjustable variable zoom lens
  • Camera has pigtail for BNC Video Output and 12V DC Jack
  • 12V DC Power Input
  • Power adaptor included

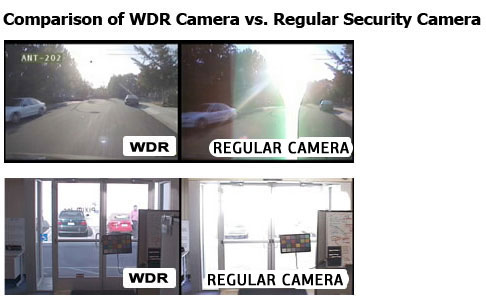

Example of Super WDR Function:

WDR vs Regular Camera


  • 1x WDR Dome Camera
  • 1x 12V power supply



Image Pick-up Device 1/3" Sony Super HAD II CCD
Effective Pixels NTSC: 976(H)×494(V)
Video Format NTSC
Horizontal Resolution 700 TVL
Minimum Illumination 0.001 Lux
Backlight Compensation Auto
White Balance Auto
Gain Control Auto
Sync Internal
S/N Ratio =>115dB AGC On
Electronic Shutter NTSC:1/60-1/100000Sec
Built-in Lens 2.8-12mm Manual Zoom Lens (2mp Lens)
Video Output 1.0Vp-p 75Ω BNC
Operation Temperature 14 to 120 Degrees F
Power Supply DC 12V 350 mA
Dimensions 4.6 (Diameter) x 3.6 (Height) inches

Additional Information

Warranty 1 Year
Return Policy 30 Days Return Policy
