WDR Professional Security Camera

Item # 9952

Be the first to review this product


Availability: In Stock

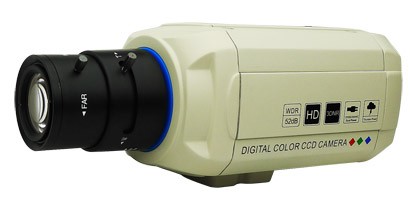

WDR Security Camera

More Views


This WDR security camera has a 1/3" Sony CCD with Pixim DPS (Digital Pixel System) that supports 650 lines of resolution with Wide Dynamic Range, and OSD menu controllable from the camera to set various parameters.  It comes with a 2.8-12mm Lens that lets you set the camera anywhere from a 90 degree angle of view to 20 degrees. We throw in a FREE 12V power adaptor to power the camera and a wall mount indoor bracket as well. If you are looking to use this camera with a 24V power supply look no further because it is a dual voltage camera that can run either on 12V DC or 24V AC voltage.

This professional WDR security camera can be used to provide surveillance of areas that have a wide range of lighting conditions.  For example, if you have an indoor area that you need to watch that has a normal amount of indoor light, but has a large window in its background that has direct sunlight and you need to capture the indoor images as well as the background images, this WDR camera is right for you. The WDR function also lets you point the camera directly at sunlight and still get a clear picture without glare. This camera has a day and night feature, where it will automatically switch to black and white mode in low light.

Like any box camera, you can also use this camera outdoors by placing it in one of our outdoor housings.


  • Color Professional Security Camera
  • Pixim Image Sensor with DPS
  • 650 TV Lines Resolution - High Res!
  • 1 Lux in Color and 0.01 Lux in Black and White mode - Starlight Camera
  • OSD menu (on screen display menu) that lets you control several different picture parameters
  • Day and Night Camera that switches to black and white mode when it is very dark
  • Wide Dynamic Range function to see even when light is shining at the camera
  • 2.8 to 12mm manually adjustable varifocal zoom lens
  • 90 degree viewing at widest setting
  • 20 degree viewing angle at narrowest setting
  • BNC video output
  • Dual power design accepts either a 24V AC or 12V DC power source
  • 12V Power adaptor included

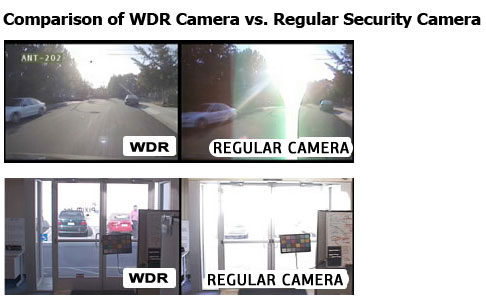

Example of WDR Function:


  • 1x WDR Security Camera
  • 1x 500mA 12V power adaptor
  • 1x 2.8-12mm Lens
  • 1x Indoor Wall Mount Bracket



Image Sensor

Effective Pixels


Minimum Illumination


S/N Ratio

Signal System

Video Output


Operations Temperature

1/3" SONY Super HAD II CCD with Pixim DPS Image Processing

720 (H) x 540(V)

650 TV Lines

1 Lux Color / 0.01 Lux BW

C/CS mount type, 2.8 - 12 mm Varifocal Lens

More than 48 dB


1.0V[p-p], 75W - BNC

12V DC or 24V AC

-10°C to 50°C (14°F to 122°F)

Additional Information

Warranty 1 Year
Return Policy 30 Days Return Policy
