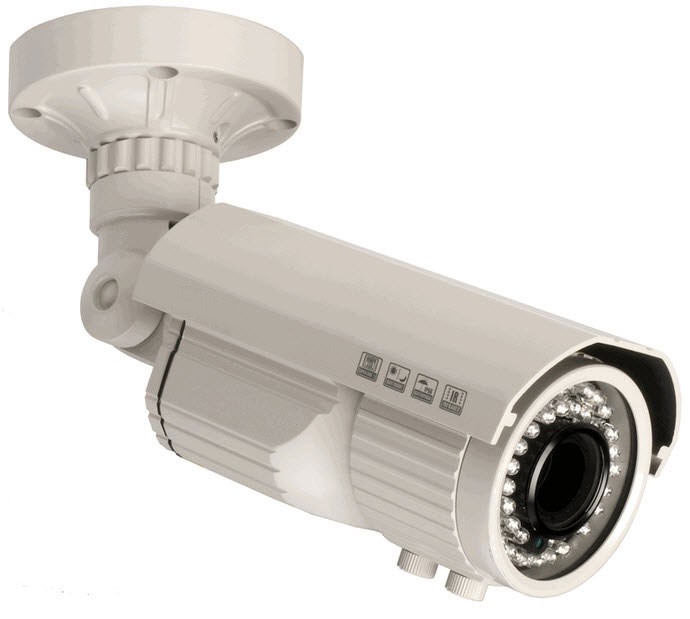

WDR Security Camera with Night Vision 700TVL 9-22mm Lens

Item # 3972AVA

Be the first to review this product


Availability: In Stock


WDR Security Camera with Night Vision 700TVL 9-22mm Lens

More Views


This cctv camera is one of the highest resolution WDR security cameras on the market that also has a long range lens of 9-22mm. It features the newest, state of the art image signal processor that allows for CCTV Video resolutions much higher than previous technology.

It offers night vision up to 130 feet in complete darkness and farther if there is other lighting around.  The lens on this camera is manually adjustable as well.  You can set it from 9mm to 22mm zoom length which is suitable to see facial deatail up to 80ft away. Because of its long zoom length it is great for mounting on top of a garage for security down a long driveway up to 100ft long. Its WDR functionality makes it even better by allowing it to handle sun glare in most situations. On top of all these features, it also has Digital Noise Reduction (DNR).  This is yet another feature that puts this camera above other cameras in the market.  Most cameras on the market will display very grainy video during night time, with this camera featuring DNR, the noise has been greatly reduced.

This camera also comes with an on screen display menu controlled by a small joystick located on the underbelly of the camera to navigate around the menu.  This on screen display menu allows the user to adjust many camera settings and features.

As for mounting this camera, it comes with a 3 axis bracket, where the camera cable runs through the inside of the bracket.  This allows protection of your camera cables from being cut. The 3-axis design lets you mount the camera on a wall, ceiling, or flat horizontal surface like the top of a roof.

We strive to bring our customers the best camera out there for an affordable price. If you’re looking for the best in analog security cameras, look no further.


  • Weatherproof Infrared Color Security Camera
  • Day and Night Camera with Sense-UP technology that lets you see in color in very low light
  • 42 High Intensity Infrared LEDs for 130ft of Night Vision
  • 1/3" Sony Super HAD II CCD Image Sensor
  • 630 TVL Resolution Camera
  • Digital Noise Reduction Technology to provide clear video
  • WDR Wide Dynamic Range
  • 0 Lux Rating with Infrared On
  • IP66 Weatherproof rating to withstand heavy rain, snow, and extreme cold or hot temperatures
  • 9 to 22mm Manual Zoom Lens
  • 3 Axis mounting bracket
  • Bracket with pass through cabling to protect cabling from vandalism
  • OSD menu accessible from the control located underneath the camera
  • DC 12V 1Amp power supply included


  • 1x WDR CCTV Camera
  • 1x Mounting bracket
  • 1x 12V 1000mA power supply

If needed, choose cabling from Product Options above.


Image Sensor 1/3" Super HAD II SONY CCD
Horizontal Resolution 630 TV Lines Color
Pixels NTSC: 795(H)×596(V)
Usable Illumination 0 Lux with Infrared On
TV System NTSC
IR LED 42 Infrared LEDs
IR Series Distance 130 ft
Lens 9-22mm Manually Adjustable Zoom Lens
Sync System Internal
S/N Ratio ≥65dB (AGC OFF)
Gamma Correction 0.45
Video Out Composite Signal BNC Output (1.0Vp-p, 75Ω)
Electronic Shutter Time Auto: NTSC 1/60-1/100,000Sec
Operation  Temperature -20°C to + 50 °C, Relative Humidity 95% Max
White Balance Auto
Power Source DC12V
Weight 3.55 lbs

Additional Information

Warranty 2 Year
Return Policy 30 Days Return Policy
