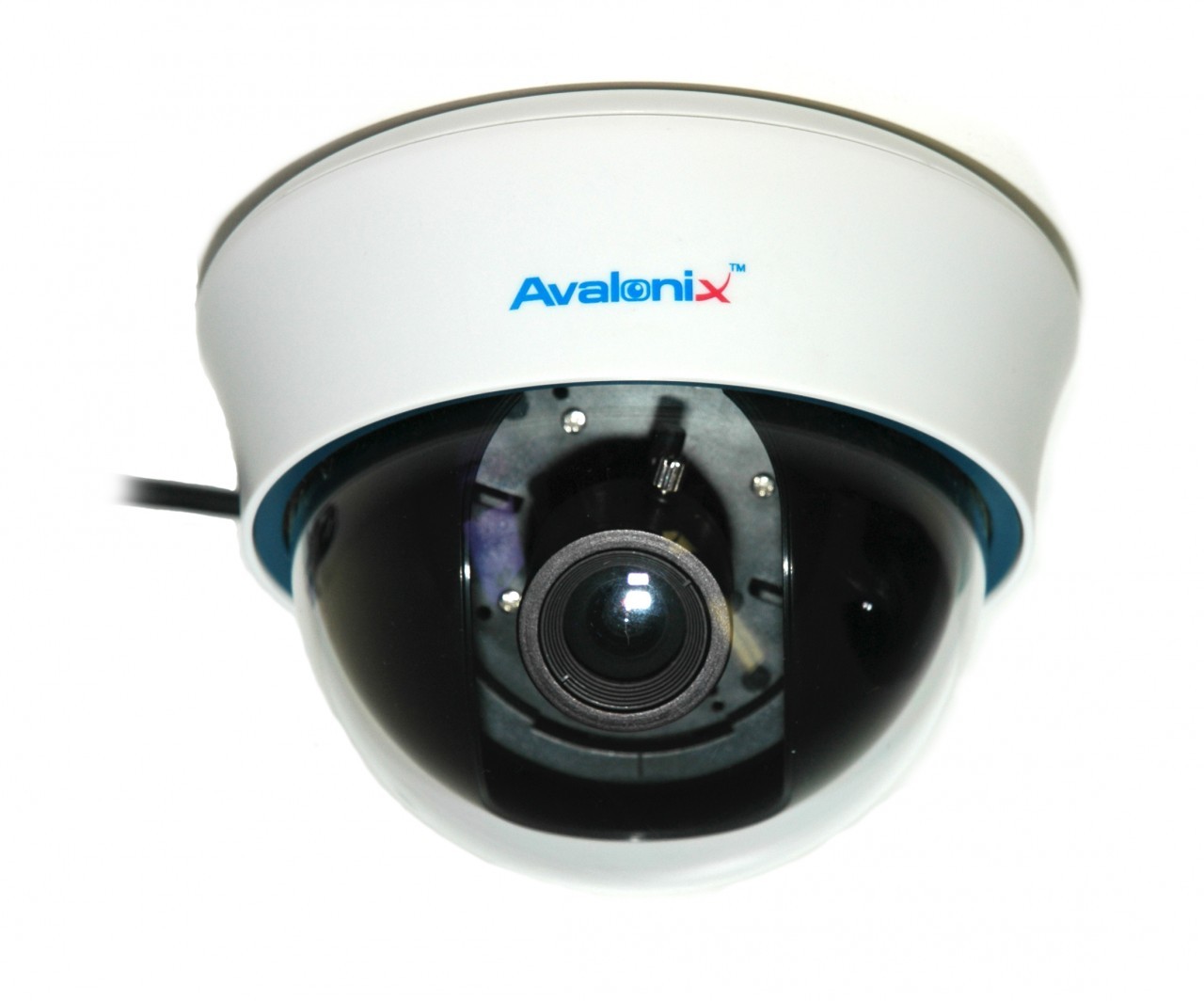

700TVL White Dome Camera with Zoom Lens

Item # 2070AVAW

Be the first to review this product


Availability: In Stock


700TVL White Dome Camera with Zoom Lens

More Views


This is a White Colored version of our Indoor Dome Camera 700 TVL with Zoom Lens. It is exactly the same camera except that it is white in color which is great for use on light colored ceilings.

This is the highest resolution dome security cameras on the market. It has the newest SONY Image Sensor that provides 700 TV Lines of Resolution in Color. You can manually adjust the lens at time of installation from 4mm for a wide angle view of 80 degrees to see things up close or set it all the way to 9mm for a 2.5x zoom to see objects that are 30ft away and farther. This is not your ordinary dome camera because of the SONY Effio image sensor that it has. The camera also has a on-screen display menu that you can control with the button located on the camera cord to change several camera settings.  This camera also has a 3 axis bracket that lets you position the camera virtually any way you want. Please take a look at the camera review video below to learn more about this camera and how to mount it.

If you need video/power cabling please make a selection above.


  • Indoor Camera
  • 1/3" Sony CCD Image Sensor provides crisp 700 TV Lines of Resolution
  • SONY Effio-E Image Processor
  • Day and Night Camera that turns to black and white mode in low light
  • 0.001 Lux so you can see in very dim light
  • Adaptive Tone Reproduction (ATR)
  • Digital Noise Reduction (DNR)
  • Manual zoom lens adjustable from 4-9mm by hand
  • Easily mount and position the camera at virtually any angle
  • Camera Cable has joystick to control the On-Screen Display Menu to set various camera settings
  • BNC Video Output for Video
  • DC 12V power supply included


  • 1x Dome Camera
  • 1x 12V 500mA power supply for up to 100ft run

If needed, choose cabling from Product Options above.

Avalonix 700 TVL Resolution Sony Effio-E Technology

Higher horizontal resolution over 650 TVL. Confirmed maximum resolution to achieve true 700 TV Lines of Resolution.
Digital Noise reduction (DNR) is a function that reduces the image noise to improve the image quality of the camera. In particular, it reduces the noise which is generated under low light conditions and other high-gain states.
The Effio-E comes with a space-based Noise Reduction function.
Excellent color reproduction under variety of light sources [1,800K to 10,500K Lumes]
Preset OSD Menu: The "Effio-E" signal processor includes OSD (on-screen display) functions that allow camera settings to be made using the joystick or button controller located on the camera cable or inside the camera.
ATR/ATR-EX: The ATR (Adaptive Tone Reproduction) function provides gradation compensation to improve the contrast of subjects whose gradation has been lost in cases where, for instance, both low-luminance areas and high-luminance areas exist in the same picture.
The ATR function improves the visibility of the entire picture by providing optimum gradation compensation for the image in one field based on the luminance information.



Image Sensor 1/3" SONY Color CCD with Sony Effio-E DSP
Horizontal Resolution 700 TV Lines Color
Pixels NTSC:768(H)×494(V)
Usable Illumination 0.001 Lux
TV System NTSC
Lens 4 - 9mm Manually Adjustable Zoom Lens
Sync System Internal
S/N Ratio ≥52dB (AGC OFF)
Gamma Correction 0.45
Video Out Composite Signal BNC Output (1.0Vp-p, 75Ω)
Electronic Shutter Time Auto: NTSC 1/60-1/100,000Sec
Operation  Temperature -10°C to + 50 °C, Relative Humidity 95% Max
Storage  Temperature -20°C to + 60 °C, Relative Humidity 95% Max
White Balance Auto
Power Source DC12V 500mA
Weight 1.2 lbs
Diameter 4.75 inches approximate (base of camera)

Additional Information

Warranty 1 Year
Return Policy 30 Days Return Policy
