Details

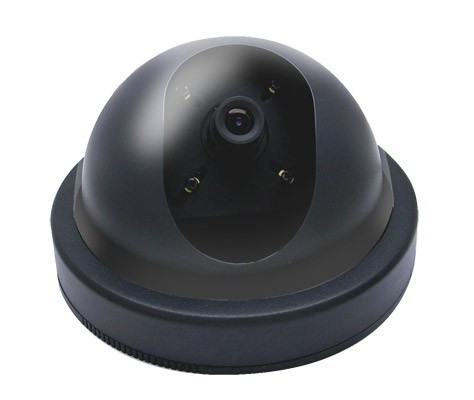

This Wide Angle Dome Camera is a Color high resolution 480 Line camera that is perfect for facial recognition up to 20ft in well lit conditions. It also features a wide angle 2.5mm lens that will provide a 90 degree angle of view making it easy for this dome camera to be used in the corner of the room to see the whole room. Lastly it features low light sensitivity, you can see well even if there is only a 20watt light bulb in the room at night time.
Features:
- Wide Angle Lens Color Dome Camera
- 2.5mm Lens giving a 90 degree angle of view
- 1/3" Color CCD
- 480 TV Lines Resolution
- 0.1 Lux Minimum Illumination
- BNC Video & 12V DC Jacks On-Board
Specifications:
|
Image Sensor
|
1/3" Color CCD
|
|
|
Picture Elements
(Horizontal x Vertical in mm) |
EIA/NTSC: 512 x 492;
|
|
| Horizontal Sync. Frequency | EIA/NTSC: 15.734KHz; | |
|
Vertical Frequency
|
EIA/NTSC: 60Hz;
|
|
| Clock Frequency |
EIA/NTSC: 19.0699MHz;
|
|
|
Horizontal Resolution
|
480 Lines
|
|
|
Minimum Illumination
|
0.1 Lux
|
|
|
Scanning System
|
2:1 Interlace
|
|
|
Signal to Noise Ratio
|
46 dB
|
|
|
Electronic Shutter Speed
|
1/125.000 / Sec Linear
|
|
|
Lens
|
2.5mm / F2.0
|
|
|
Video Output
|
1V p-p, 75 ohms
|
|
|
Gamma
|
0.45
|
|
| White Balance | Auto Tracing | |
| Auto Gain Control | Yes | |
|
Power Supply
|
12V DC
|
|
| Power Consumption | 200mA | |
|
Weight
|
140g
|
|
| Dimensions | 106 x 86mm approximate | |
|
Storage Temperature
|
-30°C to +60°C
|
|
|
Operating Temperature
|
-10°C to +45°C |
