16 Camera Surveillance System Long Range Infrared, FULL HD

Item # SPF169884

Be the first to review this product

Regular Price: $3,868.99

Now only: $3,699.00

Availability: In Stock

* Required Fields

Regular Price: $3,868.99

Now only: $3,699.00

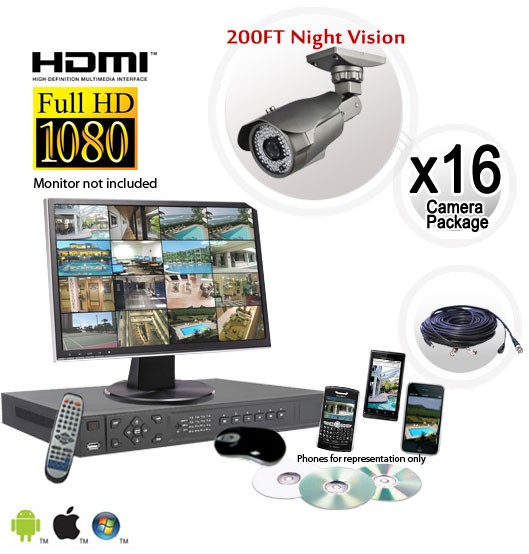

FULL HD 16 Camera Surveillance System Long Range Infrared

More Views



FULL D1 Resolution 16 Camera Security System with 200ft Night Vision 700TVL Cameras

Amazing deal on a security camera package. This is an outdoor security camera solution featuring top of the line security components. This is the only place you will find such quality products put together in an all-in-one package ready to go for you.

We've taken the time to find the best, most affordable security components for our systems.

The included DVR Recorder comes with a variety of features, all of which are very user friendly for configuring. With this unit you can fully customize recording schedules, resolutions of recording for each camera, and it features fully customizable motion detection areas as well. Using the on-screen display menu, you can easily set which areas of the screen you want motion detection, and which areas you do not. This is especially useful for environmental movement that may cause unwanted triggering of motion detection. Viewing your recorded video is as easy as 123, it has a very user friendly interface, while not compromising advanced features. This DVR also features remote viewing, not only from a web-browser anywhere with an internet connection, but from select Smartphones as well. Imagine being able to pull up your cameras with the ease of opening an app on your Smartphone. Email notification can be set as well, so you will know about an event wherever you are.

Picture this: You are on the go, and you receive an email notification to your Smartphone detecting motion in front of your garage. Immediately you pull up that camera on your Smartphone! It's a false alarm, just a pesky rodent this time, but what about next time?

The 16 Channel DVR Recorder in this system is compatible with the following devices using included software and mobile apps that are free of charge:

  • iPhone
  • iPad
  • Android Phone
  • Android Tablets
  • Windows Phone
  • Blackberry Phones 9800 Series and Higher
  • Nokia Phones
  • Windows PC
  • Windows Internet Explorer
  • Google Chrome Browser on PC
  • Mac OSX v10.5.8 - 10.6.2 (via XQuartz Emulation)

As for the cameras included in this package... These bullets pack a punch! Packed inside this thing are 84 high intensity infrared LEDs. This thing is like an infrared spotlight with a camera attached! This means it can see over 200ft in complete darkness. This is the perfect night ops camera. In daytime, it features a color resolution of 700TVL. On top of all these features, this camera has what is called a vari-focal lens. It ranges from 2.8mm to 12mm, meaning you can manually adjust the zoom length and field of view to get the perfect shot when installing the camera. The camera has lens adjustment screws on the bottom of the camera belly that you can toggle by hand. At the widest 2.8mm setting you get a 90 degree angle of view, and at the 12mm narrowest setting you get a 20 degree angle of view. The cameras feature a SONY CCD with a SONY Effio-E image processor to offer you the clearest image possible with a CCTV camera. These cameras are made out of metal and are weather proof with a IP66 rating, meaning they will withstand rain, snow, sleet, and hot or cold temperature. Don't worry about frigid or subzero temps with these cameras. They will last in almost all types of weather.

All necessary wiring and connectors you need are included in this system for you, and it is plug and play ready!

Monitor Sold Separately. Please choose a monitor if you require one.

DVR Features:

  • 16 Security Camera BNC Inputs
  • 4 Channel Audio Input
  • H.264 Video Compression for clear and detailed video quality
  • D1 Resolution Viewing and Recording at 30fps per camera (480fps Total) meaning jitter/time-lapse free High Resolution Video
  • Includes 2TB Hard Drive for up to 1 week of video recording at the highest resolution
  • DVR Expandable up to 6TB of storage by using two 3TB Hard Drives
  • Simultaneous 16 Camera Playback of recorded or live video on monitor
  • Simultaneous 16 Camera Playback of live video and 4 camera recorded video playback over internet on the PC
  • Selectable recording video quality levels
  • Multiplex operation allows up to 4 tasks to be done on the DVR simultaneously
  • Allows user to view live video, playback recorded video, record video, backup video, and access over network all at the same time without ever stopping recording
  • Easy to use DVR menu for operation of the DVR featuring point and click navigation (mouse included)
  • Independent camera settings customizable for each camera:
    • Video Loss Alarm
    • Video Based Motion Detection - records video and audio when there is motion in the picture
    • Trigger of built-in buzzer alarm, log events, and inform via email
    • Email based notification on motion trigger with or without picture
  • Full feature set of controls available when remotely viewing over internet through Internet Explorer:
    • View Live Video for all 16 Cameras in one grid, or choose to view each camera in full screen mode
    • 16 Camera Playback - plays recorded video of all 16 cameras on one screen by selecting time of video or logged motion detect events
    • Convenient timeline feature during playback of recorded video makes it very easy to surf through recorded video on the DVR
    • Backup video to a USB flash drive, external USB DVD Burner, or over internet on to your PC as an AVI file
    • Bandwidth Management for slow internet connections so smaller images are displayed faster
    • Supports up to 10 remote viewers at the same time
  • Included software allows monitoring and control of up to 32 DVRs from one location
  • Triple Video Output:
    • VGA output at 1280x1024 or 1024x768 Resolution to connect any computer VGA monitor
    • BNC video output to connect regular TV
    • Second BNC video out for Spot Monitor
    • 1080i HD video output via HDMI
  • USB port for video backup to a USB flash drive
  • Hand Held Remote Control and Mouse Included for easy operation

Camera Features:

  • Weatherproof Infrared Color Security Camera
  • Day and Night Camera with 0.001 Lux that can see in color in very low light
  • 84 High Intensity Infrared LEDs for over 200ft of Night Vision
  • 1/3" Sony CCD Image Sensor with SONY EFFIO-E image processor
  • True 700 TVL Resolution Camera
  • 0 Lux Rating with Infrared On
  • IP66 Weatherproof rating to withstand heavy rain, snow, and extreme cold or hot temperatures
  • 2.8 to 12mm Manual Zoom Lens to set the camera to the desired zoom length at time of installation
  • 3 Axis Bracket to mount and position the camera at virtually any angle on a ceiling or wall
  • Bracket with pass through cabling to protect cabling from vandalism
  • Dark Grey Colored Camera

What's Included?

  • 16 - 700TVL Sony Effio Security Cameras
  • 1 - 16 Channel D1 DVR with 2TB HDD
  • 1 - 12 Volt DC Power Box for 16 Cameras
  • 8 - 100 ft Plug and Play Power/Video Siamese Cable
  • 8 - 50 ft Plug and Play Power/Video Siamese Cable
  • 1 Year Warranty on Cameras
  • 2 Year Warranty on DVR

Additional Information

Warranty 2 Year
Return Policy 30 Days Return Policy
